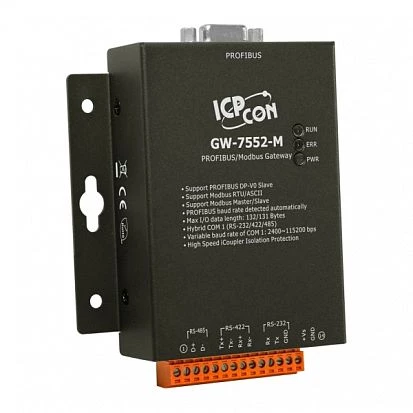

GW-7552-M

GW-7552-M

ICP DAS
SKU: 07549400
PROFIBUS/Modbus Gateway, 80186 CPU, 80MHz, metal case
Price on request
Available
Available

Interfaces
RS-232/422/485
1
Industrial Interfaces
Profibus DP Version
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave, Profibus slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
33 mm
Height
119 mm
Dimensions
Gross Weight
0.5 kg
Interfaces
RS-232/422/485
1
Industrial Interfaces
Profibus DP Version
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave, Profibus slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
33 mm
Height
119 mm
Dimensions
Gross Weight
0.5 kg
Interfaces
RS-232/422/485
1
Industrial Interfaces
Profibus DP Version
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave, Profibus slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
33 mm
Height
119 mm
Dimensions
Gross Weight
0.5 kg
Interfaces
RS-232/422/485
1
Industrial Interfaces
Profibus DP Version
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave, Profibus slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
72 mm
Depth
33 mm
Height
119 mm
Dimensions
Gross Weight
0.5 kg

Documentation
DataSheet UserManual GW-7552_FAQ
Software
Firmware and GSD GW-7552 Utility
Documentation
DataSheet UserManual GW-7552_FAQ
Software
Firmware and GSD GW-7552 Utility
Documentation
DataSheet UserManual GW-7552_FAQ
Software
Firmware and GSD GW-7552 Utility
Documentation
DataSheet UserManual GW-7552_FAQ
Software
Firmware and GSD GW-7552 Utility
