MGate 5192-T

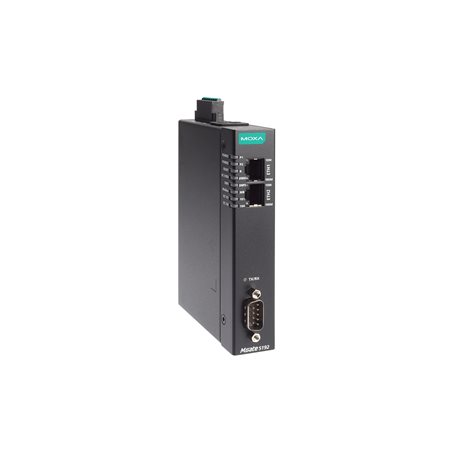

MGate 5192-T

MOXA
SKU: 11208200
1-port IEC 61850-DNP3/IEC 101/IEC 104/Modbus gateway, 12-48VDC-in, -40 to +75C operating temperature
Price on request
Available
Available

Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU, Modbus ASCII, 60870-5-101 master, 60870-5-104 client, DNP3, IEC61850 MMS client
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, ARP, DHCP Client, SNMP Trap
Security Protocols
HTTPS
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
90 mm
Height
129 mm
Standards and Certifications
EMI
FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201, IEC 62443-4-2
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.29 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU, Modbus ASCII, 60870-5-101 master, 60870-5-104 client, DNP3, IEC61850 MMS client
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, ARP, DHCP Client, SNMP Trap
Security Protocols
HTTPS
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
90 mm
Height
129 mm
Standards and Certifications
EMI
FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201, IEC 62443-4-2
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.29 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU, Modbus ASCII, 60870-5-101 master, 60870-5-104 client, DNP3, IEC61850 MMS client
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, ARP, DHCP Client, SNMP Trap
Security Protocols
HTTPS
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
90 mm
Height
129 mm
Standards and Certifications
EMI
FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201, IEC 62443-4-2
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.29 kg
Gross Weight
0.6 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU, Modbus ASCII, 60870-5-101 master, 60870-5-104 client, DNP3, IEC61850 MMS client
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, ARP, DHCP Client, SNMP Trap
Security Protocols
HTTPS
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
90 mm
Height
129 mm
Standards and Certifications
EMI
FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201, IEC 62443-4-2
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.29 kg
Gross Weight
0.6 kg

Documentation
Datasheet for MGate 5192 Manual for MGate 5192 QIG for MGate 5192
Documentation
Datasheet for MGate 5192 Manual for MGate 5192 QIG for MGate 5192
Documentation
Datasheet for MGate 5192 Manual for MGate 5192 QIG for MGate 5192
Documentation
Datasheet for MGate 5192 Manual for MGate 5192 QIG for MGate 5192

Get a Quote

MOXA
SKU: 11208200
MGate 5192-T
MGate 5192-T
MGate 5192-T
