MB-i89Q0
Arbor
SKU: 08045700

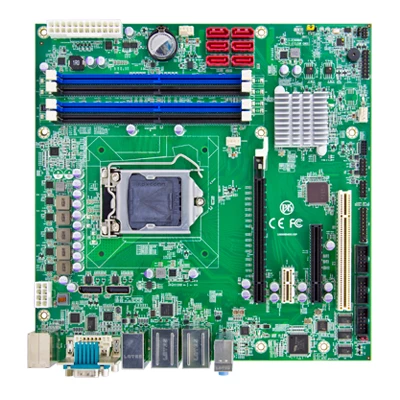

Micro-ATX Motherboard with LGA 1151 Intel Core i7/i5/i3 6th Gen, 4x288-pin DDR4 Long-DIMM 2133/1866 MHz up to 64 Gb, DVI-I, 2xDP, 2xGbE LAN, 6xSATA III RAID 0/1/5/10, 10xUSB, 2xCOM, Audio, PCI, PCIe x16, PCIe x8 (x4 signal), PCIe x1, power 12 V
Price on request
Available
Available
System Architecture
Form Factor
Micro ATX
CPU
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1151
Number of CPU
1
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
64 GB
Graphic
Interfaces
DVI-I, 2xDisplayPort
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
2
USB Total
14
USB 2.0
10
USB v3.x
4
Drive interfaces
RAID Levels
1, 5, 10
Extension Slots
Total
4
PCI Express x16
1
PCI Express x8
1
PCI Express x1
1
PCI
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, 4xUSB 2.0, 24-pin ATX
Connectors
DB9, DVI-I, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 10xUSB, Mic In, Line In, Line Out, 2xDisplayPort
Dimensions and weight
Width
244 mm
Length
244 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.2 kg
