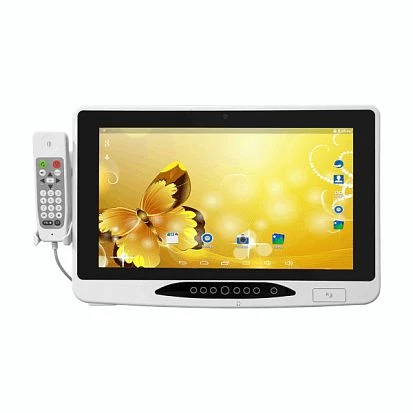

M1861
Arbor
SKU: 57852700
18.5" Medical Panel PC, 1366x768, 250cd/m2, PCAP Touch, IP65 Front, ARM Cortex-A17 1.8GHz SoC, 2GB DDR3L RAM, 16GB eMMC, 2xGbE LAN, Micro-USB, 3xUSB 2.0, 1xRS232, Smart Card, SD, 720P Front, WiFi/BT, Audio/Mic, Android, 12-24VDC-In, 0..40C
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A17
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB 2.0
4
Drive interfaces
SD Slots
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Function Keys, Volume Keys
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, 1xMicro USB, SD card slot
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Software
Operating System Compatibility
Android
Operating System Installed
Android
Dimensions and weight
Width
499.7 mm
Height
336.4 mm
Depth
45.3 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Vibration
1 Grms/ 5 ~ 500Hz/ random operation
Shock
10G/ peak (11ms)
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.9 kg
Gross Weight
4.35 kg
