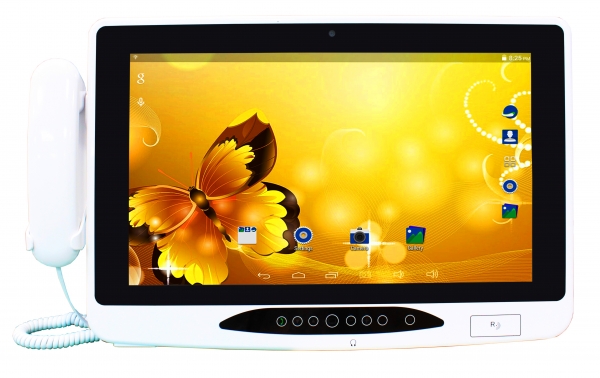

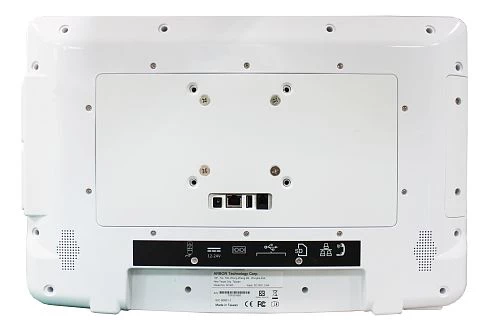

M1860
Arbor
SKU: 07056300
18.5" Fanless Medical Terminal, 1366x768, 250cd/m2, PCAP Touch, TI OMAP 4470 2xCortex A9 1.5GHz, 1GB LPDDR2 RAM, 8G eMMC Flash, 2xGbE LAN, 3xUSB 2.0, 1xMicroUSB 2.0, 1xRS232, Smart Card, SD, WiFi/BT, 2MP Front Camera, Audio, 20VDC-in w/ PSU, Android
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
TI Cortex A9 OMAP
Socket
CPU onboard
Max CPU frequency
1.5 GHz
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
3
Drive interfaces
SD Slots
1
LED / Controls
Controls
On/Off, KeyPad
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, Smart card slot, SD card slot, Audio Mic
System Power Input
Input Voltage DC
20..20 V
Power Supply
Type of Power Supply
Medical, External power adapter AC/DC
Output Power
65 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Android
Operating System Installed
Android
Dimensions and weight
Width
500 mm
Height
337 mm
Depth
45 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Vibration
1 Grms/ 5 ~ 500Hz/ random operation
Shock
10G/peak (11ms)
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
UL 60601-1, EN 60601-1, UL 60601-1-1-2, IEC 60601-1
Dimensions
Net Weight
4.5 kg
Gross Weight
5.4 kg
