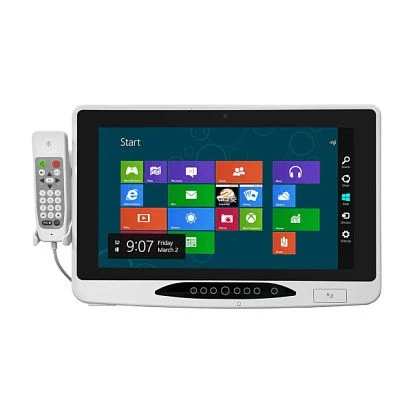

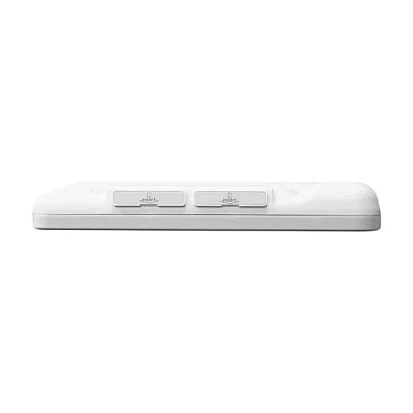

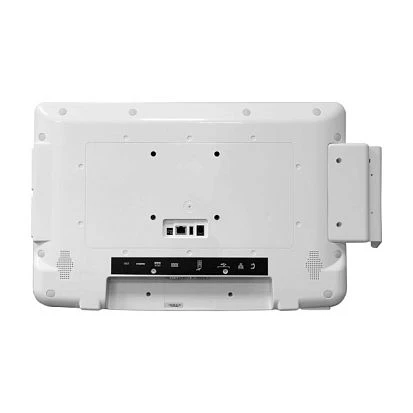

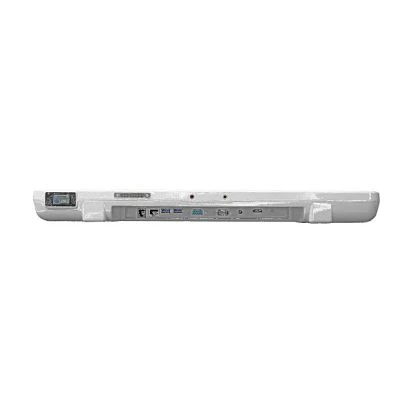

M1859
Arbor
SKU: 57852800
18.5" Medical Panel PC, 1366x768, 250cd/m2, PCAP Touch, IP65 Front, Intel Celeron N3160 1.6GHz CPU, 4GB DDR3L RAM, 32GB mSATA SSD, HDMI, 2xGbE LAN, 2xUSB 3.0, 1xUSB 2.0, 1xRS232, 2xSmart Card, 5MP Front, WiFi/BT, Audio/Mic, 20VDC-In, 0..40C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Socket
FCBGA1170
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
1
USB v3.x
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
Drive Interface
SATA
1st Storage Capacity
32 GB
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Function Keys, Volume Keys
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Software
Operating System Compatibility
Ubuntu, Windows Embedded 8.1 Industry
Dimensions and weight
Width
500 mm
Height
337 mm
Depth
45 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Vibration
1 Grms/ 5 ~ 500Hz/ random operation
Shock
Operating: 10G/peak (11ms); Non-operating: 10G/peak w/ SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
5.6 kg
