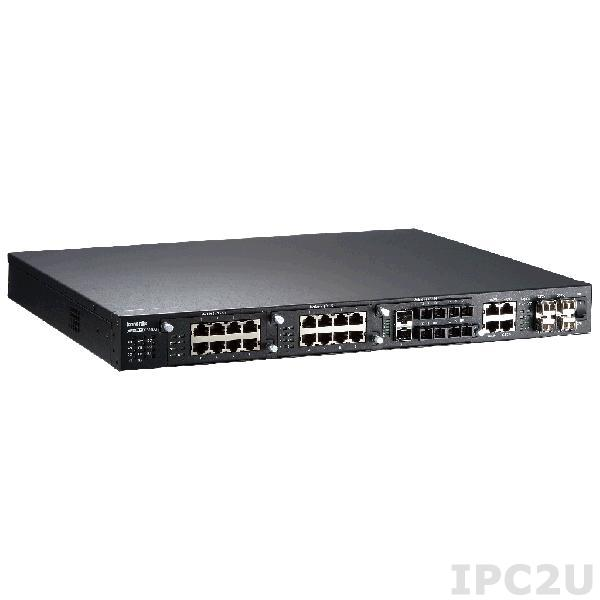

JetNet 5828G
KORENIX
SKU: 66165400
1U Rackmount Industrial Layer 3 Managed Ethernet Modular Switch with 4x1000Base-TX/1000Base-X RJ45/SFP Combo Ports, Support up to 24x10/100Base-TX Ports or 18x100Base-FX Fiber Ports, 2x24/48V DC and 85..264VAC/88..370VDC Power Input
Price on request
Available on order
Available on order
Ethernet
10/100 Mbit/s
24
10/100/1000 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Dimensions and weight
Width
431 mm
Depth
375 mm
Height
44 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-10, IEC 61000-4-11, IEC 61000-4-16, IEC 61000-4-17, IEC 61000-4-29
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60870-2-2
Dimensions
Gross Weight
7 kg
