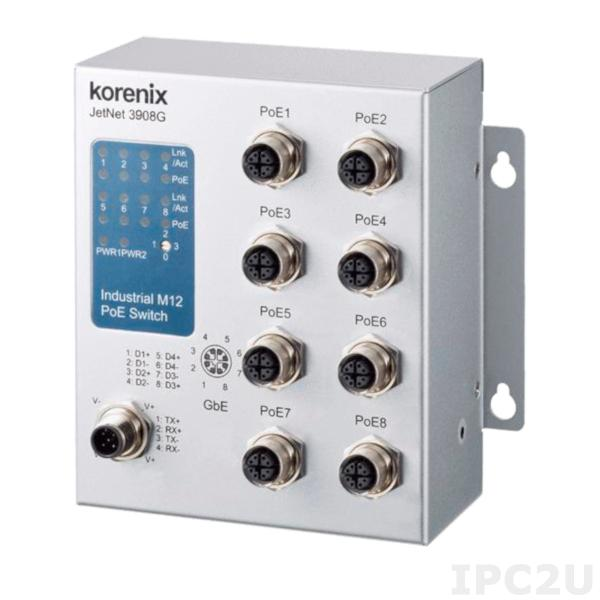

JetNet-3908G-M12
KORENIX
SKU: 56785200
Korenix Industrial Unmanaged Ethernet Switch, 8xGbE M12 X-code PoE/PSE (IEEE 802.3af/at), 180W PoE budget, DC-In 12V-36V, Embedded DC 54V Booster, -40~75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Power Budget
180 W
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Connectors
Connectors
8xM12
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Operating Conditions
Vibration
IEC 61373
Shock
IEC 60068-2-32 with package
Standards and Certifications
Certifications
FCC Class A, EN61000-6-2, EN61000-6-4
EMS
EN 50121-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Vehicle
E-Mark
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Power Budget
180 W
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Connectors
Connectors
8xM12
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Operating Conditions
Vibration
IEC 61373
Shock
IEC 60068-2-32 with package
Standards and Certifications
Certifications
FCC Class A, EN61000-6-2, EN61000-6-4
EMS
EN 50121-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Vehicle
E-Mark
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Power Budget
180 W
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Connectors
Connectors
8xM12
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Operating Conditions
Vibration
IEC 61373
Shock
IEC 60068-2-32 with package
Standards and Certifications
Certifications
FCC Class A, EN61000-6-2, EN61000-6-4
EMS
EN 50121-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Vehicle
E-Mark
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Power Budget
180 W
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Connectors
Connectors
8xM12
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
116 mm
Depth
58 mm
Height
140 mm
Operating Conditions
Vibration
IEC 61373
Shock
IEC 60068-2-32 with package
Standards and Certifications
Certifications
FCC Class A, EN61000-6-2, EN61000-6-4
EMS
EN 50121-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Vehicle
E-Mark
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
Get a Quote
