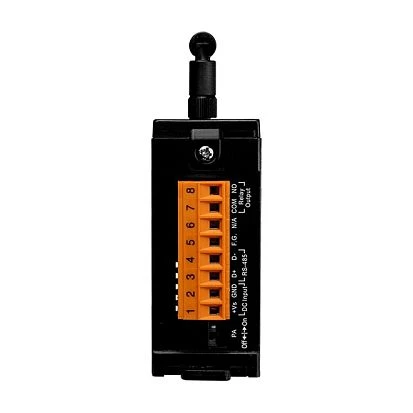

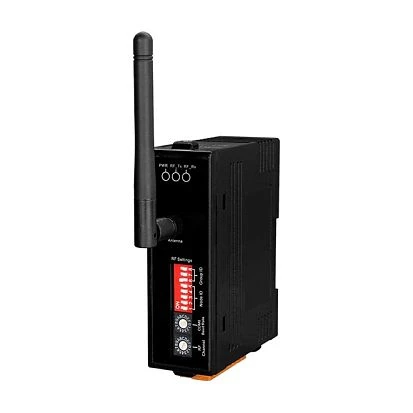

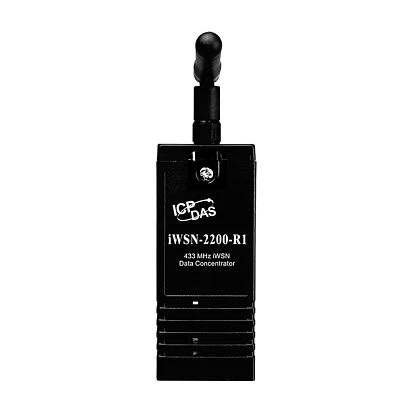

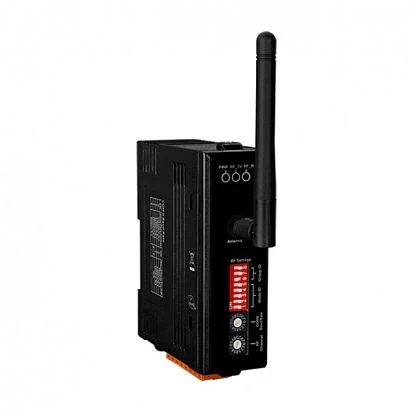

iWSN-2200-R1

iWSN-2200-R1

ICP DAS
SKU: 09115900
iWSN Data Concentrator with 1-port RS-485 and 1-Channel Relay Output (RoHS)
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Digital Output
Total channels of digital output
1
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Interfaces
COM Total
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus RTU master
Dimensions and weight
Width
33 mm
Depth
84 mm
Height
108 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
