ITA-2111-00A1E
Advantech
SKU: 07551200

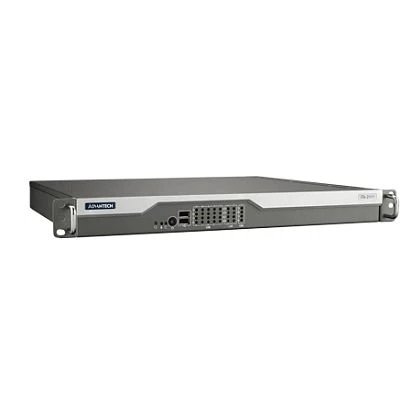

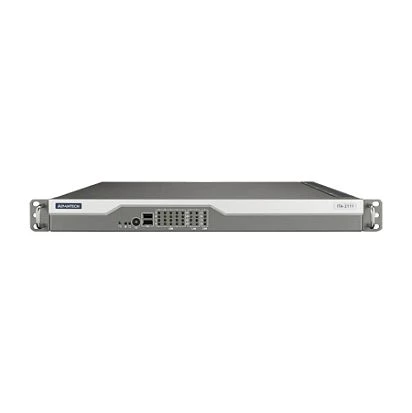

1U Fanless Railway System with Intel Atom E3845 1.91GHz, 4Gb DDR3, VGA, DVI-D, 4xGbE LAN, 10xCOM (RS-232/422/485), 6xUSB 2.0, 1xUSB 3.0, Single AC/DC power input
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3
Default on Board Memory
4 GB
Maximum Memory
8 GB
Graphic
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
10
RS-232/422/485
10
USB Total
7
USB 2.0
6
USB v3.x
1
Drive interfaces
mSATA
1
Connectors
Connectors

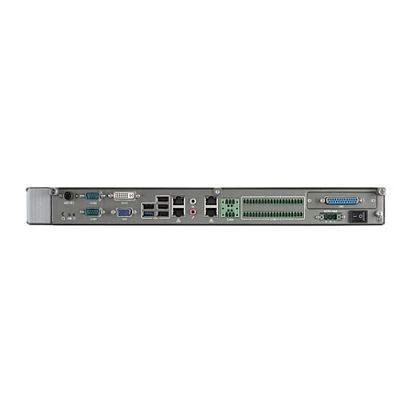

DVI-D, DB15 VGA, PS/2 Keyboard/Mouse, 4xRJ45 Ethernet, 7xUSB, Mic In, Line Out
System Power Input
Input Voltage AC
100..240 V
Dimensions and weight
Width
426 mm
Height
44.4 mm
Depth
326.65 mm
Operating Conditions
Operating Temperature
-25..60 °C
Standards and Certifications
Certifications
CE/FCC, FCC Class A
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
