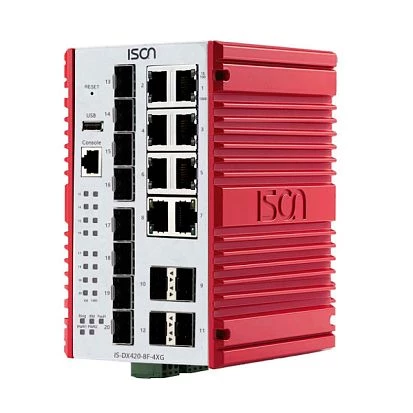

IS-DX420-8F-4XG

IS-DX420-8F-4XG

ISON
SKU: 56685700
Industrial DIN-Rail 20-port Layer 2 Managed Ethernet Switch with 8x Gbit LAN, 8x1G FX SFP Slot, 4x10G FX SFP Slot,-40...+75C operating temperature, Dual 12...48VDC Power Input
Price on request
Available
Available

Ethernet
Total Ethernet
20
10/100/1000 Mbit/s
8
10 Gbit/s SFP+ Ports
4
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, SNMP, RMON, TFTP, TCP, ICMP
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
145 mm
Depth
113 mm
Height
91 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
