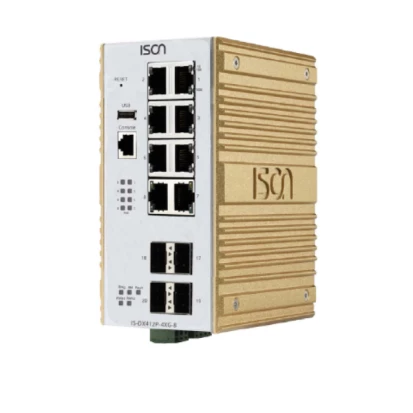

IS-DX412P-4XG-8
ISON
SKU: 56669800
Industrial DIN-Rail 12-port Layer 2 Managed PoE Switch with 8x Gbit PoE LAN and 4x10G FX SFP Slot,-40...+75C operating temperature, Dual 48...57VDC Power Input
Price on request
Available
Available
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
10 Gbit/s
4
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, Syslog, Telnet, UDP, TCP
Security Protocols
IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Connectors
Connectors
4xRJ45 Ethernet, DC Input, 8xRJ45 Ethernet
System Power Input
Input Voltage DC
48..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
145 mm
Depth
118 mm
Height
93 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
IEC 61000-6-2, IEC 61000-6-4, WEEE, CE/FCC
EMI
EN 55022, EN 55022 Class A, FCC Part 15, EN 61000-6-4
EMS
CISPR 22, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
