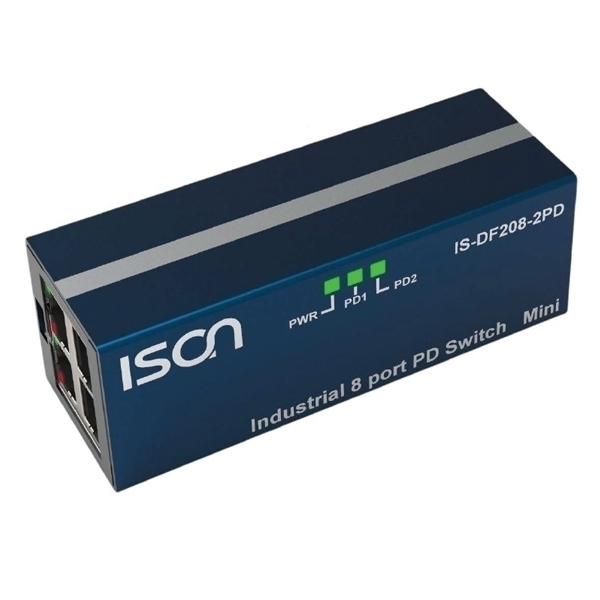

IS-DF208T-2PD
ISON
SKU: 80296900
Industrial Fast Unmanaged Switch, IP30, 8x10/100Base-T, 2PD, 1DC, 12..58 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Switch Properties
MAC Table Size
1000
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..58 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
40 mm
Depth
40 mm
Height
110.3 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.3 kg
Gross Weight
0.8 kg
