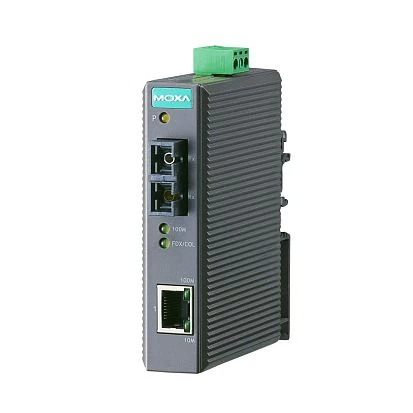

IMC-21-S-SC
MOXA
SKU: 03148600
Industrial 10/100Base-Tx to 100-Fx Media Converter, Single Mode, SC Fiber Connector, Operating Temperature -10...+60°C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, SC
Fiber
Type of Fibre Optic
single-mode
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
Supported functions
Link Fault Pass-Through (LFP)
LED / Controls
LED
10/100M LED, PWR1, FDX/COL
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
97 mm
Height
109 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55032
Freefall
IEC 60068-2-32
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.19 kg
