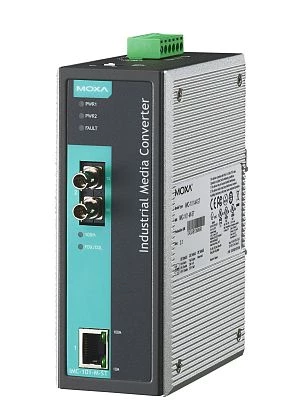

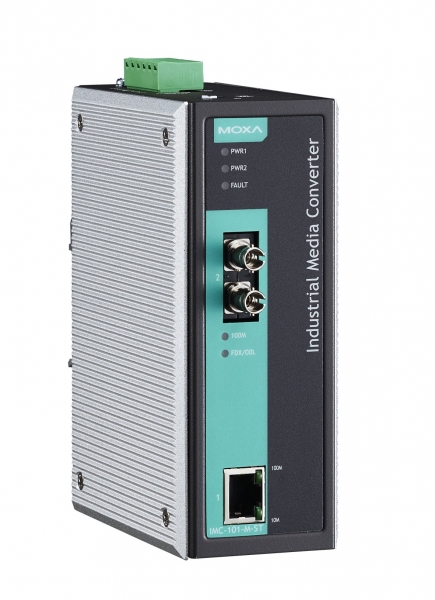

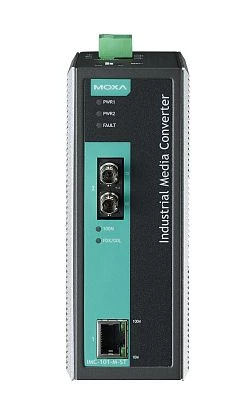

IMC-101-M-ST
MOXA
SKU: 02047300
Industrial 10/100Base-Tx to 100-Fx Media Converter, Multi Mode, ST Fiber Connector
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45, ST
Fiber
Type of Fibre Optic
multi-mode
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
Supported functions
Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)
LED / Controls
LED
FAULT LED, 10/100M LED, PWR1, PWR2, FDX/COL
Setup of Operation Mode
By Switches
System Power Input
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024, EN 55032
Freefall
IEC 60068-2-32
Marine grade
DNV, GL
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.93 kg
Gross Weight
0.93 kg
