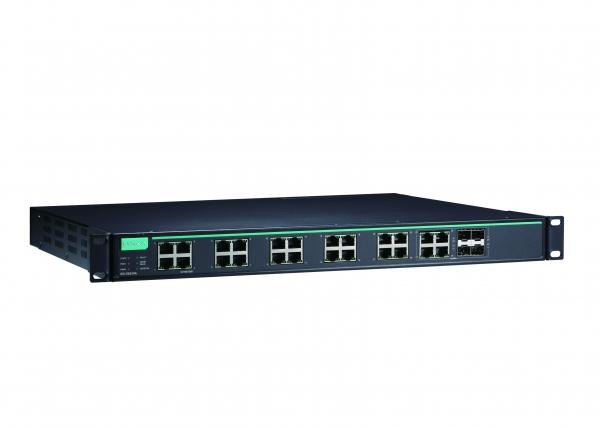

IKS-G6824A-4GTXSFP-HV-HV
MOXA
SKU: 06609800
Layer 3 Full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -10 to 60C operating temperature
Price on request
Available
Available
The managed Ethernet L3 switch IKS-G6824A-4GTXSFP-HV-HV is ideal for segments of a network with a large amount of traffic. This switch is mounted in a 19 "rack and occupies 1U.It supports the expansion modules of the IM6700A series. The features of this switch are 3 levels: - Ability to backup communications for uninterrupted operation - Automatic sending of notifications of interruptions of communication or power supply - Operating temperature fr om -10 ~ + 60oC and fanless Performance will help use the L3 switch wh ere conventional network devices can not cope - Wide input voltage range and power redundancy - Certified in accordance with most standards Average time MTBF for more than 50 years like any third-level managed switch, the IKS-G6824A-4GTXSFP-HV-HV is much more expensive than its second-tier counterparts, which is explained by a completely different approach to ensuring its uninterrupted operation, data transmission security in the network and reliability of this class of switches in general. Buy IKS-G6824A-4GTXSFP-HV-HV and find out about the optimal configuration and features of its configuration for your task, contacting our specialists: sales@ipc2u.com [ mailto:sales@ipc2u.com ] .
The managed Ethernet L3 switch IKS-G6824A-4GTXSFP-HV-HV is ideal for segments of a network with a large amount of traffic. This switch is mounted in a 19 "rack and occupies 1U.It supports the expansion modules of the IM6700A series. The features of this switch are 3 levels: - Ability to backup communications for uninterrupted operation - Automatic sending of notifications of interruptions of communication or power supply - Operating temperature fr om -10 ~ + 60oC and fanless Performance will help use the L3 switch wh ere conventional network devices can not cope - Wide input voltage range and power redundancy - Certified in accordance with most standards Average time MTBF for more than 50 years like any third-level managed switch, the IKS-G6824A-4GTXSFP-HV-HV is much more expensive than its second-tier counterparts, which is explained by a completely different approach to ensuring its uninterrupted operation, data transmission security in the network and reliability of this class of switches in general. Buy IKS-G6824A-4GTXSFP-HV-HV and find out about the optimal configuration and features of its configuration for your task, contacting our specialists: sales@ipc2u.com [ mailto:sales@ipc2u.com ] .
Ethernet
Total Ethernet
24
10/100/1000 Mbit/s
24
Type 10/100/1000 Mbit/s
4xCombo (RJ-45 or SFP), 20xRJ45
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
440 mm
Depth
386.9 mm
Height
44 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
5.1 kg
Gross Weight
6 kg
