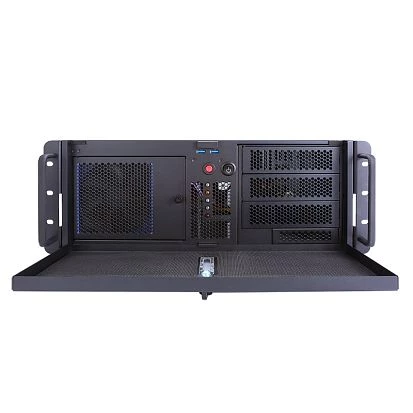

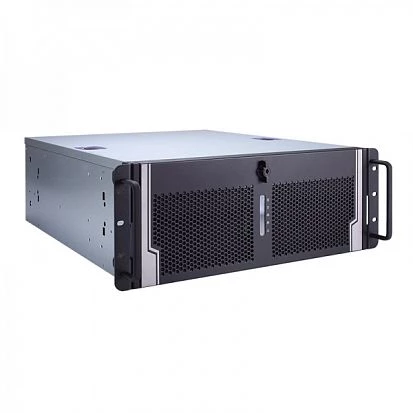

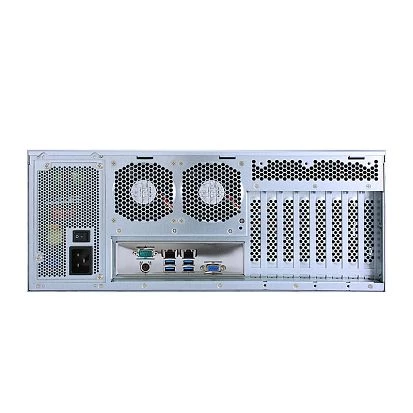

iHPC300-C621A-BA
AXIOMTEK
SKU: 09477900
4U Rackmount GPU Workstation with LGA4189 socket for Intel Xeon, DDR4, VGA, 2xGbE LAN, 6xUSB 3.1, 7xUSB 2.0, 6xSATA 3, 3x5.25" Bay, 1x3.5" Bay, M.2 M Key, 3xPCIe x8, 3xPCIe x16, Audio, 1200W PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
4 U
Type
Fans
CPU
СPU Generation/Family
Ice Lake
Socket
LGA4189
CPU Support Type
Xeon
Chipset
Chipset
Intel C621A
Memory
Form-factor
DDR4
Socket Type
6xDIMM
ECC
Yes
Maximum Memory
384 GB
Assembly
Removable
Graphic
Graphic Controller
Aspeed AST 2510
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
13
USB 2.0
7
USB v3.x
6
Storage Cage
Number Of Cage External
7
Cage Door
Yes
3.5" Cage Intenal
3
3.5" Cage External
1
5.25" Cage External
3
Extension Slots
Total
7
PCI Express x16
3
PCI Express x8
3
M.2
1
LED / Controls
LED
1xHDD LED, Power LED, LAN LED, Programmable LED Light Bar Indicator
Controls
On/Off, 1xReset
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB
System Power Input
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
Industrial, Internal
Output Power
1200 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows Server 2019
Dimensions and weight
Width
430 mm
Height
174.8 mm
Depth
515 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
17.15 kg
Gross Weight
21.78 kg
