IAD7T-RK2U
Winmate
SKU: 80229900

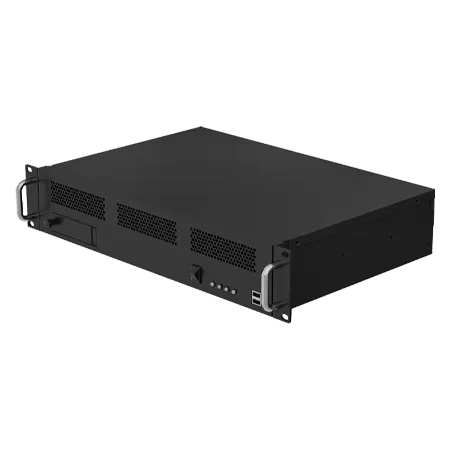

2U Rackmount Server, Intel Core i5-14500T 4.8GHz CPU, R680E, 16GB DDR5 RAM, 256GB NVME SSD, HDMI, DP, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2x2.5" Drive Bay (RAID 0/1) Optional, 1xM.2 Key-E, 1xPCIe 4.0 x16, Audio, 110-240VAC-in PSU
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-14500T
Socket
LGA1700
CPU Support Type
Core i5, Core i7, Core i9
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Registred
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, LAN LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, Display Port
Power Supply
Type of Power Supply
Internal
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
482.6 mm
Height
88 mm
Depth
300 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.8 kg
Gross Weight
10 kg
