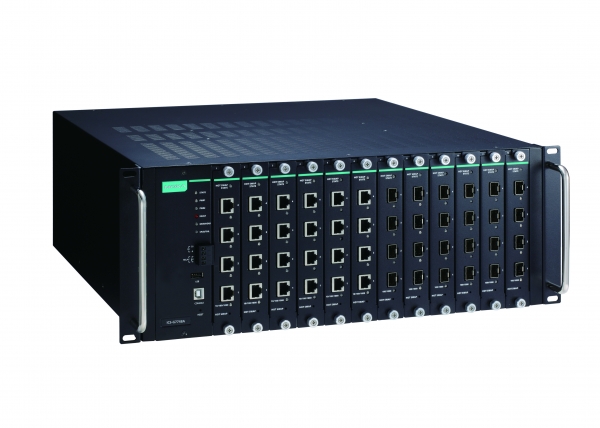

ICS-G7848A-HV-HV
MOXA
SKU: 06595300
Layer 3 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60C operating temperature
Price on request
Available
Available
Network managed Ethernet switch with 48 ports The ICS-G7748A-HV-HV is an industry-leading high-performance kernel-level switch in fanless design. The switch is mounted in a 19 "rack using the special mounts supplied, it has 12 slots for the IM-G7000A modules, which can be turned into a gigabit 48-port switch, or take part of 48 ports with PoE + and SFP modules for data transmission in optics Unlike other access switches, it has unique features: - Comprehensive communication redundancy - Turbo Ring, Spanning Tree and Turbo Chain technologies - Intelligent alarm system for interruption of communication via port or power supply - Nali Certificates confirming the reliability of the device and its ability to withstand vibration, shock, falling fr om a 2 meter height and electromagnetic interference - Complies with the standards for electromagnetic compatibility and can be used in transport - Storage temperature from -40 degrees will leave a 48-port switch in an unheated room For a long time (thanks to the protective coating of the boards) The work is possible from -10 degrees - Mean time between failures (MTBF) for more than 35 years - Work more than 20 industrial protocols about - It has a redundant power supply This 10/100/1000 Mbit / s 48-port switch allows to create extensive and reliable network management, wh ere high port density. Buying this switch is like a buying a car, and in this regard, we suggest that you consult with our certified technical specialists to choose the optimal configuration for functionality and cost.
Network managed Ethernet switch with 48 ports The ICS-G7748A-HV-HV is an industry-leading high-performance kernel-level switch in fanless design. The switch is mounted in a 19 "rack using the special mounts supplied, it has 12 slots for the IM-G7000A modules, which can be turned into a gigabit 48-port switch, or take part of 48 ports with PoE + and SFP modules for data transmission in optics Unlike other access switches, it has unique features: - Comprehensive communication redundancy - Turbo Ring, Spanning Tree and Turbo Chain technologies - Intelligent alarm system for interruption of communication via port or power supply - Nali Certificates confirming the reliability of the device and its ability to withstand vibration, shock, falling fr om a 2 meter height and electromagnetic interference - Complies with the standards for electromagnetic compatibility and can be used in transport - Storage temperature from -40 degrees will leave a 48-port switch in an unheated room For a long time (thanks to the protective coating of the boards) The work is possible from -10 degrees - Mean time between failures (MTBF) for more than 35 years - Work more than 20 industrial protocols about - It has a redundant power supply This 10/100/1000 Mbit / s 48-port switch allows to create extensive and reliable network management, wh ere high port density. Buying this switch is like a buying a car, and in this regard, we suggest that you consult with our certified technical specialists to choose the optimal configuration for functionality and cost.
Ethernet
Total Ethernet
48
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
12.9 kg
Gross Weight
14 kg
Ethernet
Total Ethernet
48
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
12.9 kg
Gross Weight
14 kg
Ethernet
Total Ethernet
48
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
12.9 kg
Gross Weight
14 kg
Ethernet
Total Ethernet
48
Switch Properties
Managed
Yes
Switch Level
Layer 3
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
12.9 kg
Gross Weight
14 kg
