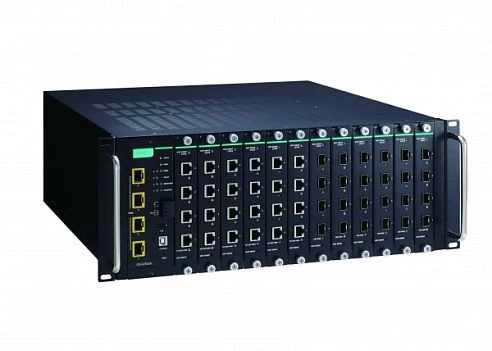

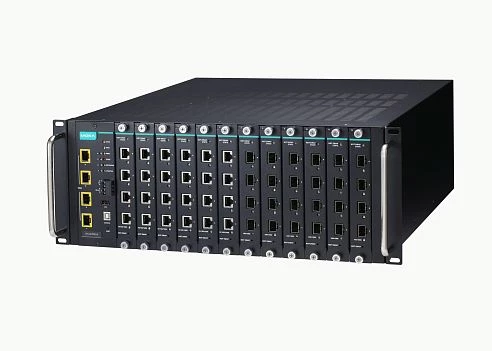

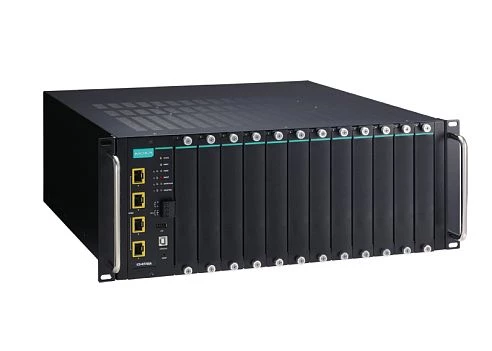

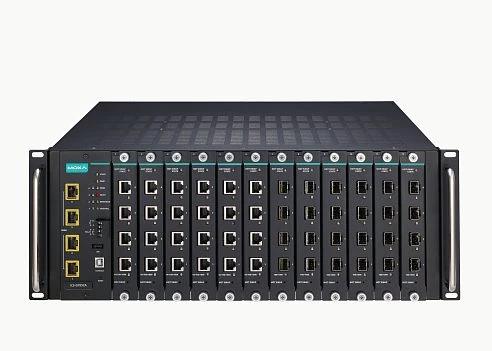

ICS-G7752A-4XG-HV-HV
MOXA
SKU: 06594600
Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module and 4 10GbE SPF+ slots, 2 isolated power supplies (85 to 264 VAC), -10 to 60C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
52
10 Gbit/s SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2 kg
Ethernet
Total Ethernet
52
10 Gbit/s SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2 kg
Ethernet
Total Ethernet
52
10 Gbit/s SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2 kg
Ethernet
Total Ethernet
52
10 Gbit/s SFP+ Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Video Always-On (V-ON)
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, MAC Authentication Bypass, NTP Authentication, Security features based on IEC 62443, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
256
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC
Expansion Module
Quantity of Slots
12
Supported Module
SFP-10G, SFP-1G, SFP-1FE, IM-G7000A series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port USB, USB type A
System Power Input
Redundant power input
Yes
Input Voltage AC
85..264 V
Power Supply Reserve input Voltage AC
85..264 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
4 U
Dimensions and weight
Width
440 mm
Depth
523.8 mm
Height
176 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2 kg
Documentation
Manual MOXA RUS ICS-G7752A Datasheet Command Line Interface User Guide (FW 4.x) Quick Installation Guide ICS-G7748A/G7750A/ G7752A/G7848A/G7850A/G7852A Series Moxa Command Line Interface (FW 5.x) Moxa Managed Ethernet Switch User Manual Moxa Managed Ethernet Switch Redundancy Protocol (UI 2.0) User Manual
