ICE-DB-T7-i2

IEI
SKU: 07857000

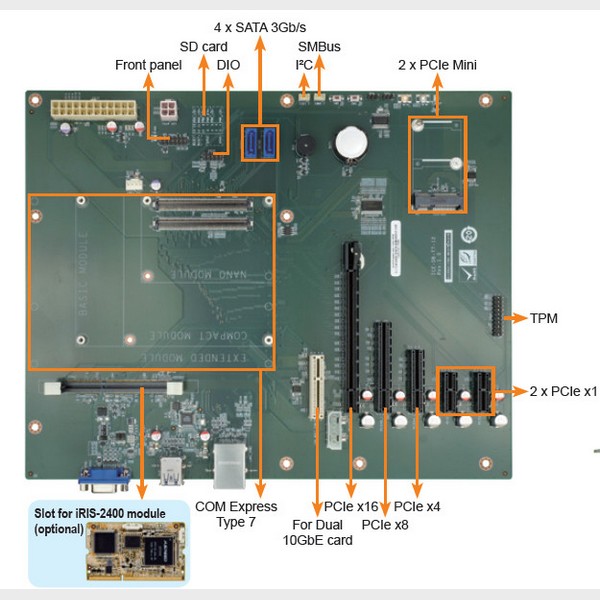

Baseboard for COM Express Type 7 Module COM.0 Rev. 3.0
Price on request
Available
Available

System Architecture
Form Factor
ATX
Interfaces
COM Total
4
RS-232
4
USB Total
4
USB v3.x
4
Extension Slots
Total
8
PCI Express x16
1
PCI Express x8
1
PCI Express x4
2
PCI Express x1
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, RJ45, 4xUSB
Dimensions and weight
Width
304.8 mm
Length
243.8 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.7 kg
