ICE-DB-T6R

ICE-DB-T6R

IEI
SKU: 07731800

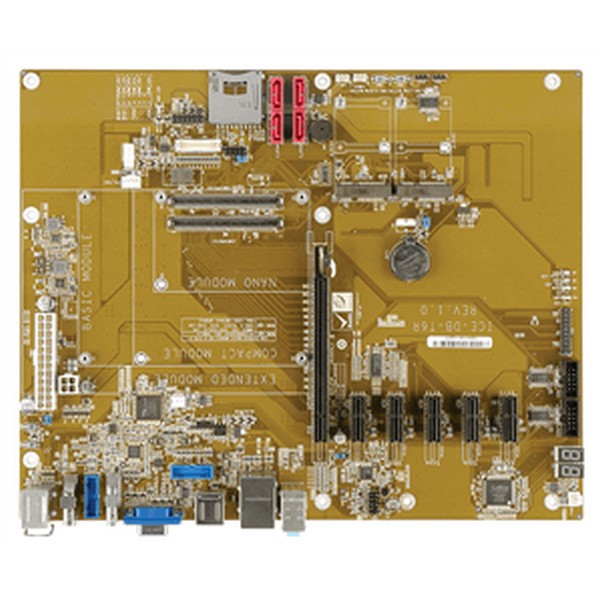

Base Board for COM Express Type 6 Module, VGA, HDMI, DisplayPort, LVDS 18/24-bit, 2xUSB 2.0, 2xUSB 3.0, 1xPCIe x16, 5xPCIe x1, 1xLPC, 2xPCIe Mini
Price on request
Available
Available

System Architecture
Form Factor
Proprietary
Construction
Type
Fanless
Interfaces
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
Total
8
PCI Express x16
1
PCI Express x1
5
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB15 VGA, LVDS, HDMI, Display Port
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Gross Weight
0.7 kg
System Architecture
