ICE-BT-T6-N28071

ICE-BT-T6-N28071

IEI
SKU: 06852600

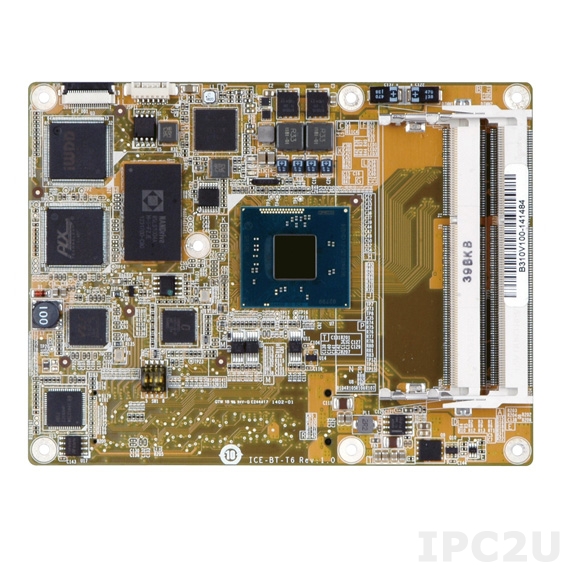

COM Express Basic Type 6 Module, Intel Celeron N2807 1.58GHz CPU, VGA, DDI, LVDS, GbE, SATA, USB 3.0 and HD Audio, -20..+60C
Price on request
Available on order
Available on order
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2807
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232
2
USB Total
11
USB 2.0
7
USB v3.x
4
Extension Slots
Total
5
PCI Express x1
5
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2807
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232
2
USB Total
11
USB 2.0
7
USB v3.x
4
Extension Slots
Total
5
PCI Express x1
5
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2807
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232
2
USB Total
11
USB 2.0
7
USB v3.x
4
Extension Slots
Total
5
PCI Express x1
5
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2807
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232
2
USB Total
11
USB 2.0
7
USB v3.x
4
Extension Slots
Total
5
PCI Express x1
5
Additional Functions
Watchdog timer type
Software
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.6 kg
Documentation
ICE-BT-T6
Documentation
ICE-BT-T6
Documentation
ICE-BT-T6
Documentation
ICE-BT-T6

Get a Quote

ICE-BT-T6-N28071
IEI
SKU: 06852600
ICE-BT-T6-N28071
