I330EAC-IV3
Winmate
SKU: 56183000

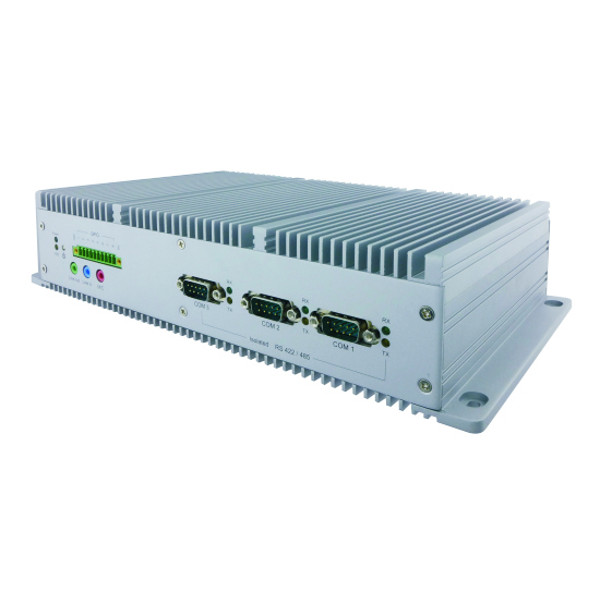

Fanless Marine PC with Intel Core i7-3555LE 2.5GHz, Intel HM76 Chipset, 8GB DDR3 RAM, 128GB MLC SSD, VGA, HDMI, 2xGbit LAN, 4xCOM, 2xUSB, GPIO, Audio, 1.5KV DC Power Isolation Resistance
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Core i7-3555LE
Max CPU frequency
3.2 GHz
Memory
Form-factor
DDR3
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps, Intel PHY WG82579LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-422/485
3
USB Total
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
128 GB
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45, 2xUSB, Mic In, Line In, Line Out, DC Input
System Power Input
Input Voltage DC
0 V
Power Supply
Output Power
60 W
Dimensions and weight
Width
296 mm
Height
214 mm
Depth
71 mm
Operating Conditions
Operating Temperature
-15..55 °C
Vibration
5Hz~500Hz / 1Grms/3 Axis
Shock
15G, 11ms duration
Dimensions
Gross Weight
4.5 kg
