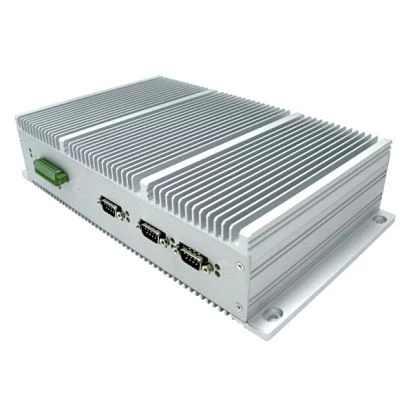

I330EAC-IK3

I330EAC-IK3

Winmate
SKU: 56802900
Rugged Fanless Marine PC, M2M, with Intel Core i5-7200U 2.5GHz, SO-DIMM DDR4L-2133 4 GB (max.16GB), 64GB SATA3 SSD, RS232, 3xRS422/485, 2xGbE LAN, HDMI, VGA 2xUSB, 8-bit GPIO, 24VDC with 1.5KV DC Power Isolation, -15...55C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall, Wall VESA 50
CPU
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i211, Intel i218-LM 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-422/485
3
RS-232/422/485
1
USB v3.x
2
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 2xUSB
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
296 mm
Height
169 mm
Depth
66 mm
Operating Conditions
Operating Temperature
-15..55 °C
Vibration
5Hz~500Hz / 1Grms/3 Axis
Shock
15G, 11ms duration
Standards and Certifications
Certifications
IEC 60945
Dimensions
Gross Weight
4.5 kg
