I-97028U
ICP DAS
SKU: 07365900

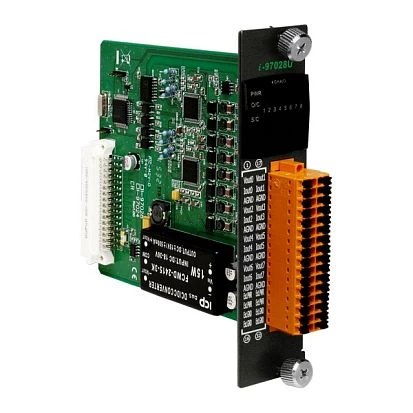

8-channel 16-bit Isolated Source Type Voltage or Current Output Module (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Output
Channels of analog input
8
DAC Bit Rate
16 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3
Dimensions
Gross Weight
0.5 kg
