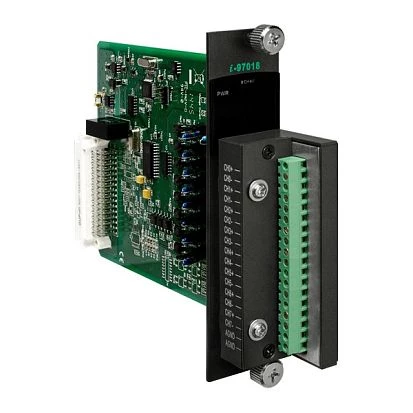

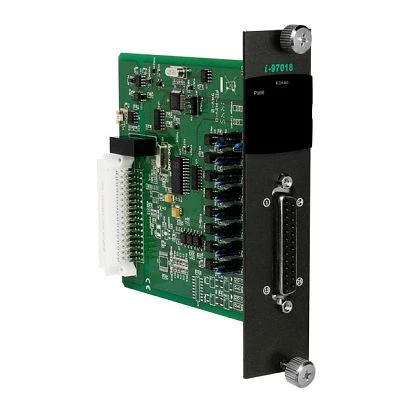

I-97018/S
ICP DAS
SKU: 07366100

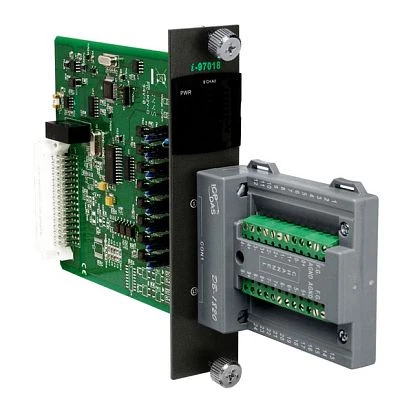

8-channel Thermocouple Input Module with High Voltage Protection (RoHS), with CN-1824M Daughter Board
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3
Dimensions
Net Weight
0.33 kg
Gross Weight
0.33 kg
