ICP-DAS i-8K Parallel bus Extension Modules

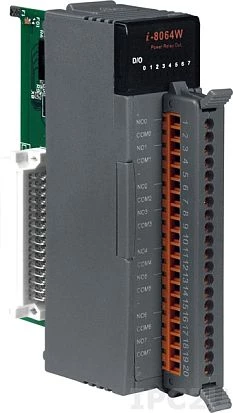

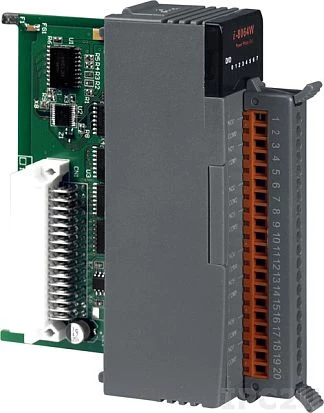

I-8064W

I-8064W

SKU: 05205400

8 Channels Power Relay Output Module, Parallel Bus, High Profile

Price on request

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

8

Type

Electromagnitic relay

Relay (Form A)

8

Contact rating of relay (Form A)

5A@250V AC, 5A@30V DC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

8

Type

Electromagnitic relay

Relay (Form A)

8

Contact rating of relay (Form A)

5A@250V AC, 5A@30V DC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

8

Type

Electromagnitic relay

Relay (Form A)

8

Contact rating of relay (Form A)

5A@250V AC, 5A@30V DC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

8

Type

Electromagnitic relay

Relay (Form A)

8

Contact rating of relay (Form A)

5A@250V AC, 5A@30V DC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Documentation

Datasheet I-8064W Selection Guide

Documentation

Datasheet I-8064W Selection Guide

Documentation

Datasheet I-8064W Selection Guide

Documentation

Datasheet I-8064W Selection Guide
