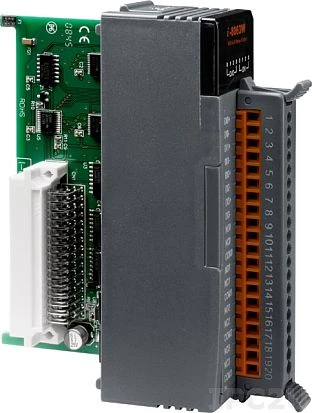

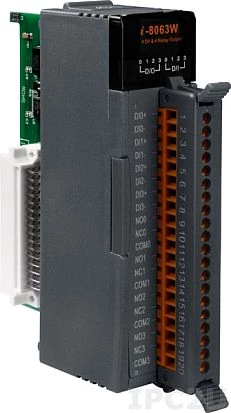

I-8063W
ICP DAS
SKU: 05339400
Isolated Digital I/O Module, Parallel Bus, High Profile, 4DI 10-30VDC, 4 relay output 30VDC/277VAC@5A
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form C)
4
Contact rating of relay (Form C)
5А(N0)/3А(NC)@277V AC, 5А(N0)/3А(NC)@30V DC
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
