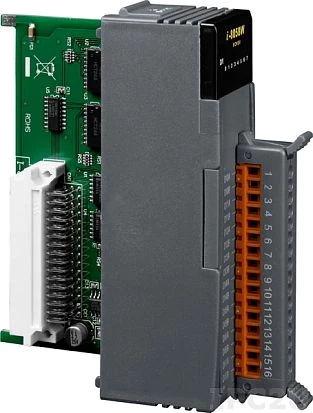

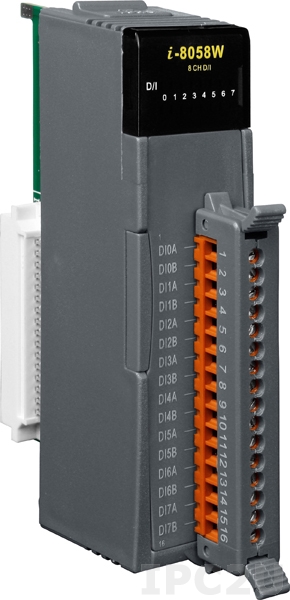

I-8058W

I-8058W

ICP DAS
SKU: 05328200
8-channel 80-250VAC Isolated Digital Input Module, Parallel Bus, High Profile
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
80~250 V
Sink/Source
AC Voltage
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
80~250 V
Sink/Source
AC Voltage
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
80~250 V
Sink/Source
AC Voltage
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
80~250 V
Sink/Source
AC Voltage
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.19 kg

Documentation
Datasheet I-8058W
Documentation
Datasheet I-8058W
Documentation
Datasheet I-8058W
Documentation
Datasheet I-8058W
