ICP-DAS i-8K Parallel bus Extension Modules

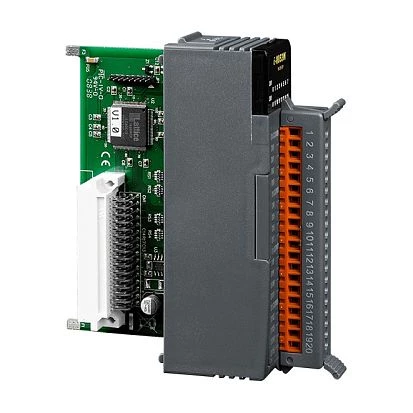

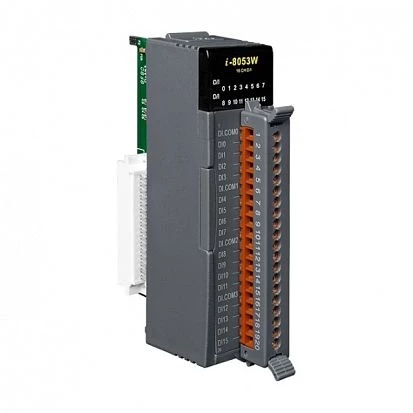

I-8053W

I-8053W

SKU: 05205300

Isolated Digital Input Module, Parallel Bus, High Profile

Price on request

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Total channels of digital input

16

Type

Wet contact

Level of Logic "0"

0~4 V

Level of Logic "1"

10~30 V

Sink/Source

Sink, Source

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Total channels of digital input

16

Type

Wet contact

Level of Logic "0"

0~4 V

Level of Logic "1"

10~30 V

Sink/Source

Sink, Source

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Total channels of digital input

16

Type

Wet contact

Level of Logic "0"

0~4 V

Level of Logic "1"

10~30 V

Sink/Source

Sink, Source

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Total channels of digital input

16

Type

Wet contact

Level of Logic "0"

0~4 V

Level of Logic "1"

10~30 V

Sink/Source

Sink, Source

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Documentation

Datasheet I-8053W, I-8053PW, I-8053W-A1

Documentation

Datasheet I-8053W, I-8053PW, I-8053W-A1

Documentation

Datasheet I-8053W, I-8053PW, I-8053W-A1

Documentation

Datasheet I-8053W, I-8053PW, I-8053W-A1
