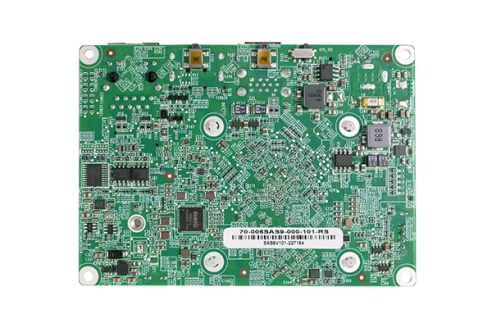

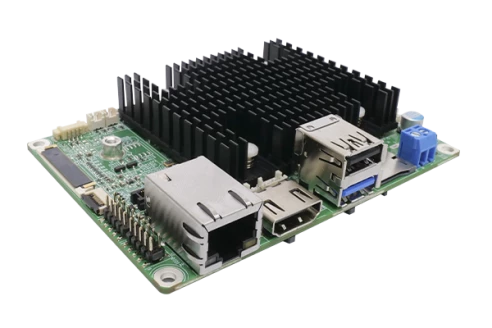

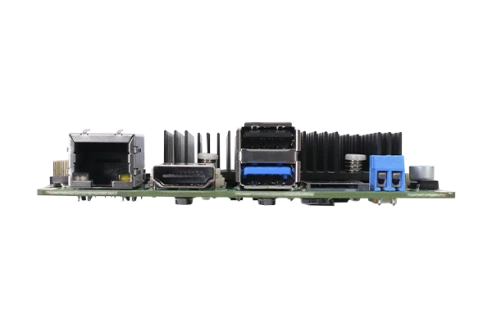

HYPER-RK3566
IEI
SKU: 09947400
PICO-ITX SBC with Intel Rockchip 3566 Processor, 4GB LPDDR4, 32GB eMMC, Support Android/Linux, HDMI2.0, MIPI DSI, LVDS, 1x1GbE RJ45, 1xUSB3.0, 3xUSB2.0, 2xRS232, 2xRS485, Support WIFI6, 12V DC IN
Price on request
Available on order
Available on order
System Architecture
Form Factor
PICO-ITX
CPU
Processor Installed
Rockchip RK3566
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Mali-G52
Interfaces
LVDS, HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
2xDB9, LVDS, HDMI, RJ45, 4xUSB
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Dimensions
Gross Weight
0.8 kg
System Architecture
