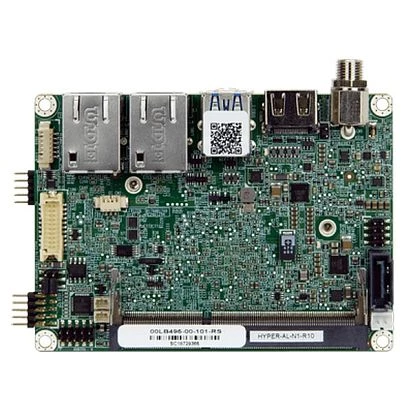

HYPER-AL-N1
IEI
SKU: 08271900
PICO-ITX SBC with Intel Celeron N3350 up to 2.4GHz, up to 8GB DDR3L, HDMI, LVDS, 2xLAN,COM, 2xUSB 3.0, 2xUSB 2.0, SATA 6Gb/s, M.2, Audio
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen9 Graphic engine
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Extension Slots
Total
2
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.8 kg
