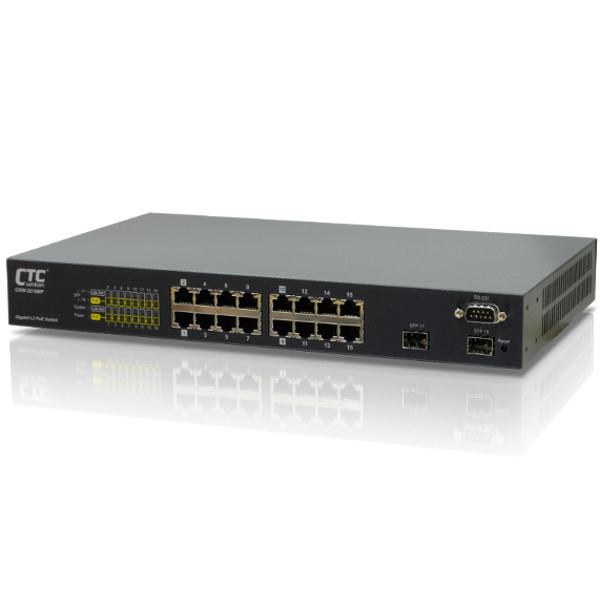

GSW-3216MP
CTC Union
SKU: 56079900
Managed Gigabit L2 PoE Ethernet Switch with 16x 1000 Base-TX PoE Ports, 2x SFP Ports, 100-240VAC Input Power, 0...50C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
18
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, DNS, DHCP, RMON
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3af/at for Power-over-Ethernet
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
Desktop, 19" Rackmount
Dimensions and weight
Width
204 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
Ethernet
Total Ethernet
18
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, DNS, DHCP, RMON
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3af/at for Power-over-Ethernet
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
Desktop, 19" Rackmount
Dimensions and weight
Width
204 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
Ethernet
Total Ethernet
18
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, DNS, DHCP, RMON
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3af/at for Power-over-Ethernet
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
Desktop, 19" Rackmount
Dimensions and weight
Width
204 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
Ethernet
Total Ethernet
18
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
RJ-45
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Syslog, DNS, DHCP, RMON
Security Protocols
HTTPS, SSH, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3af/at for Power-over-Ethernet
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage AC
100..240 V
Construction
Mounting Configuration
Desktop, 19" Rackmount
Dimensions and weight
Width
204 mm
Depth
330 mm
Height
44 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
2 kg
