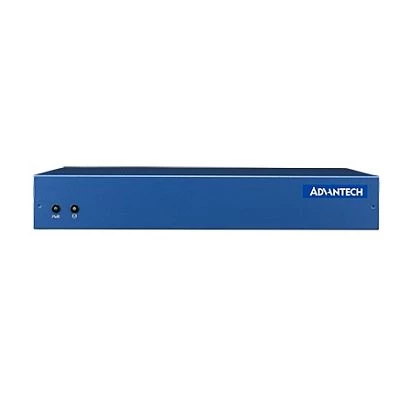

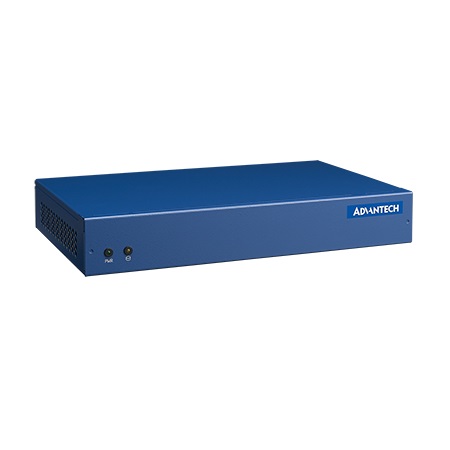

Tabletop Rackmount Processor-based Platform, support Intel Atom C2358 1.7 GHz, 2x240-pin DDR3 1600 MHz UDIMM up to 16 Gb ECC, 6xGbE/2x LAN Bypass, 1x2.5" SATA, 2xUSB 2.0, power 100-240 V DC, 60 W
FWA-1320-00E
Advantech
SKU: 08009000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Height
1 U
Type
Fan
CPU
Processor Installed
Intel Atom C2358
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3, DDR3L
Socket Type
2xDIMM
ECC
Yes
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210
Total Ethernet
6
10/100/1000 Mbit/s
6
Interfaces
USB Total
2
USB 2.0
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors

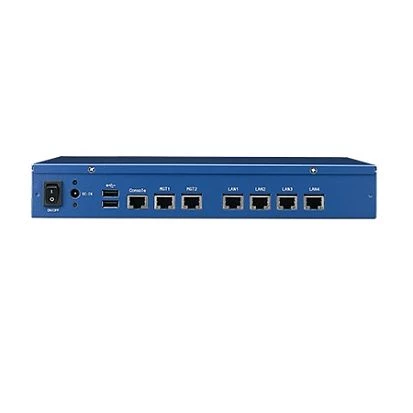

6xRJ45 Ethernet, 2xUSB, DC Input, Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
100..240 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
280 mm
Height
44 mm
Depth
176 mm
Operating Conditions
Operating Temperature
0..40 °C
Vibration
with HDD: 0.5 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis with SSD: 0.3 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis
Shock
with HDD/SSD: 10G, IEC-60068-2-27, half sine, 11ms duration
Standards and Certifications
Certifications
CE, FCC Class A
EMI
CCC (GB9254, GB 17625.1)
Dimensions
Net Weight
2.68 kg
Gross Weight
2.88 kg
