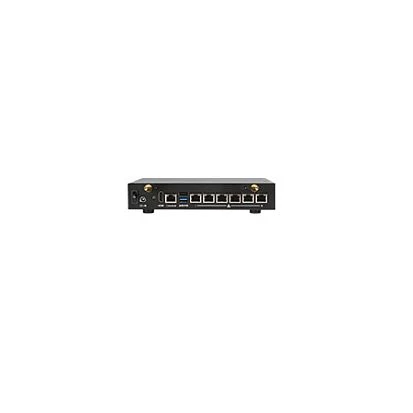

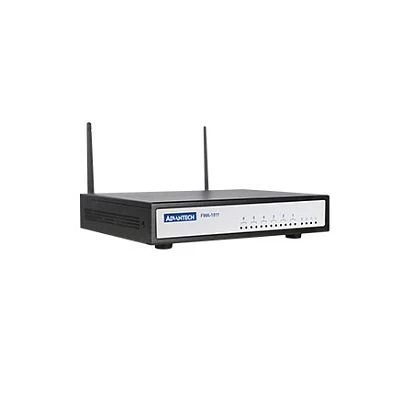

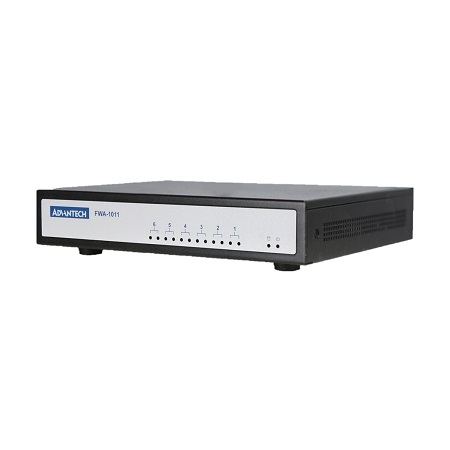

Tabletop server, support Intel Atom x5-E3930 1.3 GHz, 1x204-pin DIMM DDR3 up to 8 Gb, HDMI, 1x2.5" SSD, 4xGbE LAN, 1xM.2 2230, 1xM.2 3042, 1xM.2 SSD, 1xM.2 WiFi, 1xSIM slot, 2xUSB, power 100-240 V DC, 40 W
FWA-1011L-2C01E
Advantech
SKU: 08012500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
Processor Installed
Intel Atom x5-E3930
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Interfaces
HDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
2
SIM Card slots
1
LED / Controls
LED
1xHDD LED, Power LED, LAN LED
Controls
On/Off, 1xReset
Connectors
Connectors
ATX, HDMI, 2xUSB, DC Input
System Power Input
Input Voltage DC
100..240 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
40 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
210 mm
Height
38 mm
Depth
150 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC
EMI
CCC (GB9254, GB 17625.1)
Dimensions
Net Weight
20 kg
Gross Weight
22 kg
Documentation
