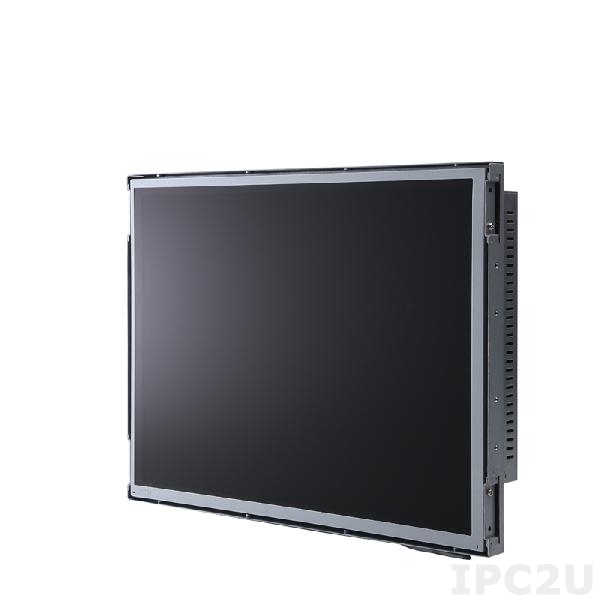

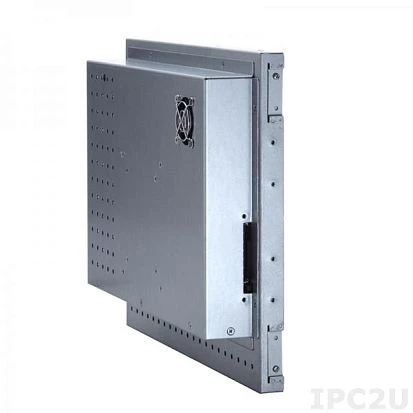

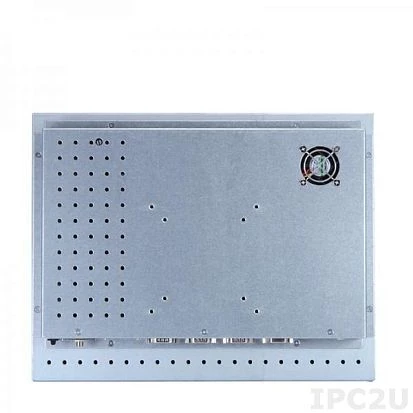

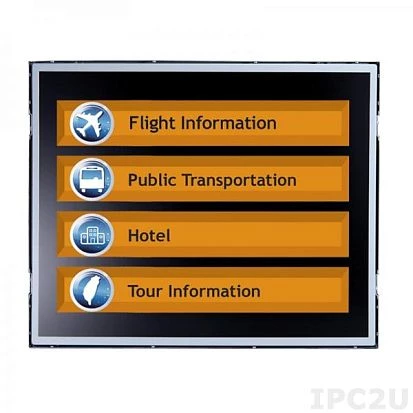

15" TFT LCD Open Frame Panel PC, XGA, Intel Atom N270 1.6 GHz, 1x 200-pin DDR2 SO-DIMM , 1x 2.5" SATA HDD, 1xCF, 3xCOM, 4xUSB 2.0, 1xPCIe Mini, VGA, LAN, Audio, power supply 12-24V DC
FDK150-830-N
AXIOMTEK
SKU: 66394800
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Type
Fan
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
250 Cd/m2
CPU
Processor Installed
Intel Atom N270
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel 945GSE+ICH7M
Memory
Form-factor
DDR2
Socket Type
1xSODIMM
Maximum Memory
2 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
4
Drive interfaces
CompactFlash Slots
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

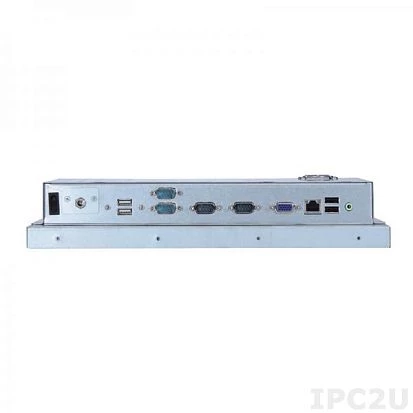

4xDB9, DB15 VGA, RJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7
Dimensions and weight
Width
335 mm
Height
60 mm
Depth
261.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.84 kg
Gross Weight
6.16 kg
