VOX-150L-TS

VOX-150L-TS

ICOP
SKU: 06531800

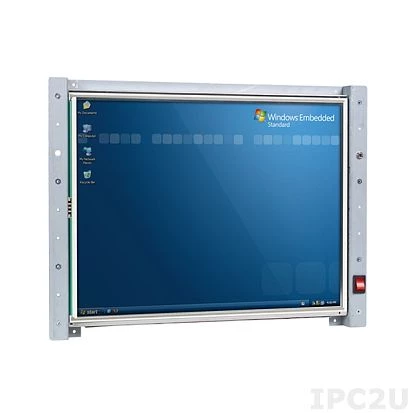

15" TFT LCD Panel PC w/ touch screen, Vortex86MX 1GHz CPU Board, 512MB DDR2 RAM, VGA/LCD/LVDS, LAN, 6xCOM, 3xUSB, GPIO, FDD, CompactFlash Socket
743,86 €
Price exlc. VAT and shipping costs
Available
Available
Display
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
250 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86MX+
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Maximum Memory
1 GB
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
Connectors
Connectors
6xDB9, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC
5..12 V
Dimensions and weight
Width
368 mm
Height
278 mm
Depth
45.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
