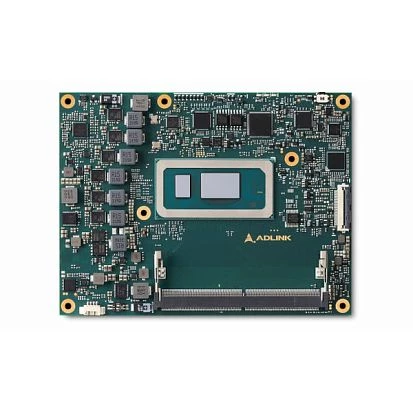

Express-RLP-i3-13300HE

Express-RLP-i3-13300HE

ADLink
SKU: 10731700
COM Express Type 6 Module with Intel Core i3-13300HE CPU, DDR5, DDI/LVDS, 2.5GbE LAN, 16xPCIe Gen4, 5xPCIe Gen3, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express CPU Module
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i3-13300HE
Max CPU frequency
4.6 GHz
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Ethernet
Controller Type
Intel i210-LM
10/100/1000 Mbit/s
1
Interfaces
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
Extension Slots
Total
1
PCI Express x16
1
Software
Operating System Compatibility
Windows Server 2012, Windows 7, Linux OS, Windows 10
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
