ET-7284

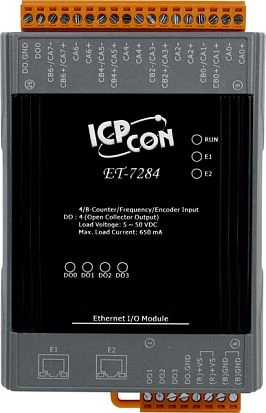

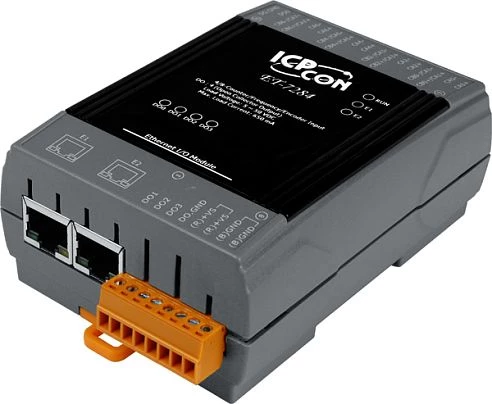

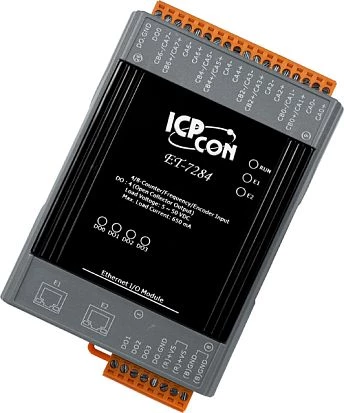

ET-7284

ICP DAS
SKU: 08327300
Ethernet I/O Module with 4-/8-channel Counter/Frequency/Encoder Input and 4-channel Digital Output (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Number of channels
8
Signal Type
CW/CCW, Pulse/Dir, AB Phase, Quadrant, Frequency, Up, Up/Down
Counter capacity
32 Bit
Max frequency
1 kHz
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
5~50 V
Max. load current
650 mA
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
76 mm
Depth
38 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
