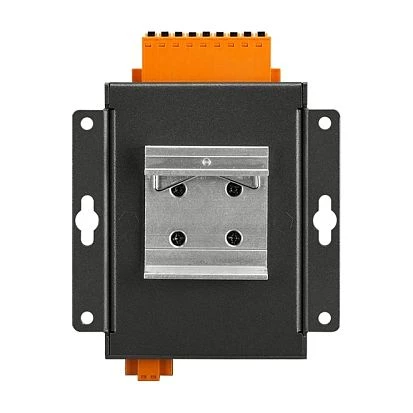

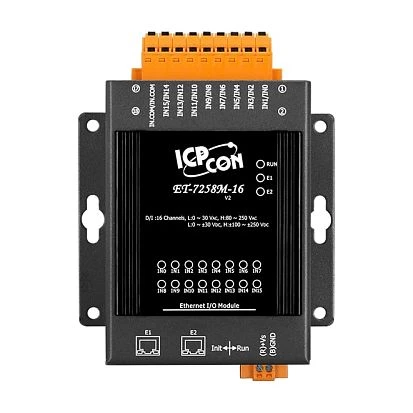

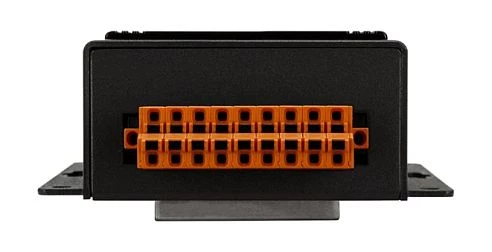

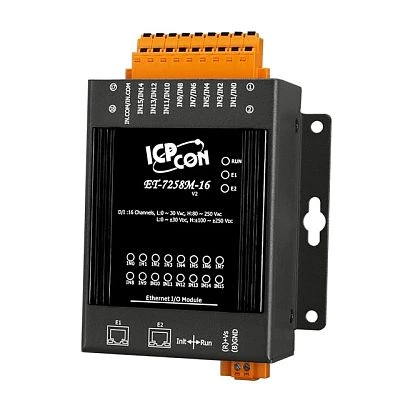

Name: ET-7258M-16
Brand: ICP DAS
SKU: 09280800
Price: 224.8 EUR
Availability: PreOrder

Home

Catalog

Industrial Automation

Remote I/O Devices and Modules

Industrial Ethernet Modules

ET-7258M-16

ICP DAS

SKU: 09280800

Ethernet I/O Module with 2-port Ethernet Switch, with 16-channels AC/DC Digital Input

Price on request

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

DIN-Rail mount, Wall

Ethernet

10/100 Mbit/s

Additional Functions

Watchdog timer type

Hardware, Software

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus UDP slave

Digital Input

Total channels of digital input

Type

Wet contact

Level of Logic "0"

0~4 V

Level of Logic "1"

80~250 V

Sink/Source

Sink, Source

Counter

100Hz, 32 bit

System Power Input

Input Voltage DC

12..48 V

Dimensions and weight

Width

38 mm

Depth

120 mm

Height

76 mm

Operating Conditions

Operating Temperature

-25..75 °C

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4

Dimensions

Net Weight

0.17 kg

Gross Weight

0.24 kg
