EDS-G205-1GTXSFP-T

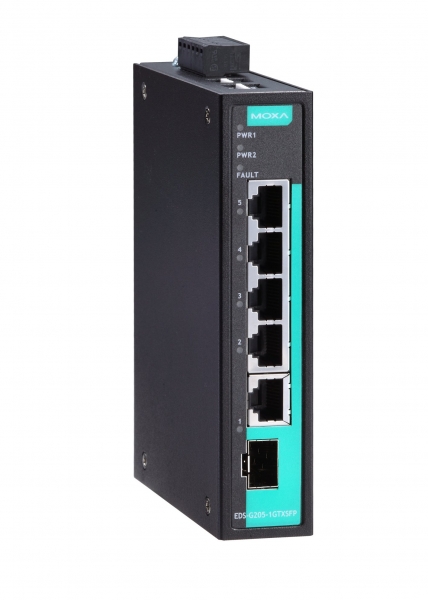

Ethernet switch EDS-G205-1GTXSFP-T by MOXA is designed especially for deployment of high speed networks in harsh weather and industrial conditions. It houses 5 Ethernet ports of 10/100/1000 Base TX standard, including 1 SFP combined port for connection of a fiber optical cable. This allows increasing the transfer distance and improving interference resistance significantly. The device is provided in a fanless industrial grade chassis, features a dual power supply circuit, supports extended ranges of input voltage and operating temperatures. Gigabit switch EDS-G205-1GTXSFP-T: description and features: Software supports the following standards: IEEE 802.3z (1000 Base TX/SX/LX/LHX/ZX for Gigabit network protocols) and IEEE 802.3az (Energy Efficient Ethernet — reducing power at the time of low network activity). There are built-in functions of speed auto negotiation, interface type detection (Auto MDI/MDI-X), data flow management (802.3x Flow Control). The device provides a relay channel for alarm notifications and DIP switches for alteration of speed (100/1000 SFP), Jumbo Frame (10 KB), power efficiency modes and protection from broadcast storms. A redundant power input activates a backup accumulator, if the main power source fails. Input voltage: 9.6…60 V DC. The device is capable of stable operation at temperature ranged from -40 to +75 °С and 95% humidity. The switch is protected by a metal chassis from solid particles ingress, shocks, vibrations (МЭК-60068/IEC 60068), electrostatic discharges, voltage spikes, impulse interference (EN-55022, EN-61000-4, FCC). Mean time between failures (MTBF standard) is over 3 centuries. Hence, the industrial switch EDS-G205-1GTXSFP-T is a greatly reliable device for construction of Gigabit network segments in aggressive weather and industrial conditions in outdoor applications. It is confirmed by the field-specific certificates for the device application on railway transport (EN 50121-4), in marine industry (DNV, GL, LR, ABS, NK), in explosion hazardous conditions of oil and gas recovery industry (Class I Div. 2, ATEX Zone 2).
