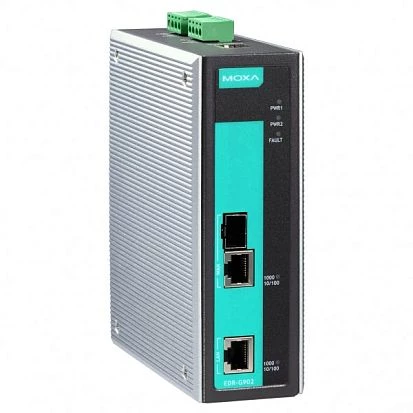

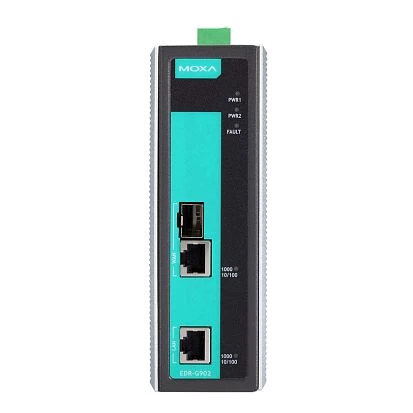

EDR-G902
MOXA
SKU: 66172100
2-Port Industrial gigabit Firewall/VPN secure router, 0...60C
End-of-life product
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
Combo (RJ-45 or SFP), 1xRJ-45
Switch Properties
Switch Level
Layer 3
Supported Protocols
Industrial Protocols
EtherCAT, EtherNet/IP, PROFINET, Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, NTP, TFTP, Bonjour
Security Protocols
HTTPS, SSH, PPTP, NAT, Firewall, IP Address Filtering, VPN, DES, 3DES, AES
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
51 mm
Depth
131.1 mm
Height
152 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Marine grade
DNV
Safety
UL 508
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.7 kg
Gross Weight
1.69 kg
