EBC-260
NEXCOM
SKU: 80062600

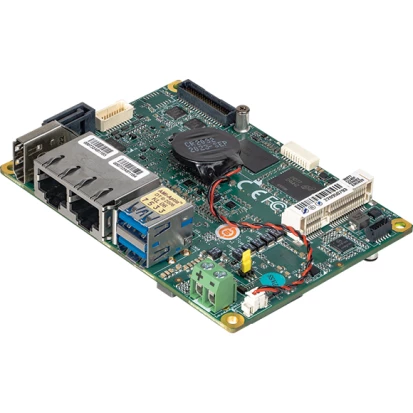

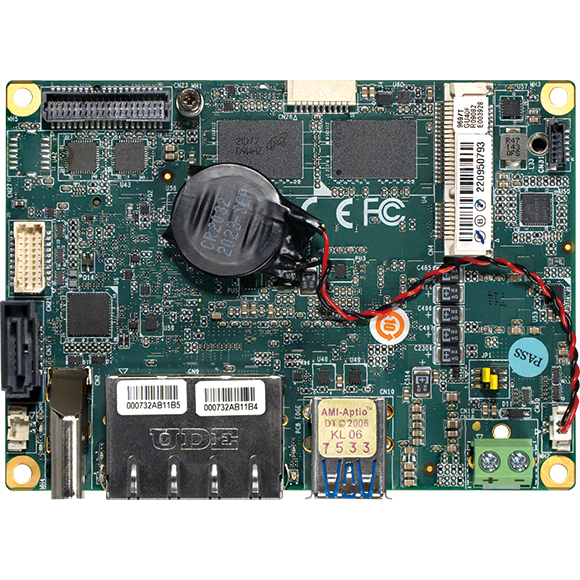

PICO-ITX Embedded Mainboard, Intel 11th Gen Core i3-1115G4E (15W TDP) CPU, 32GB LPDDR4 RAM, HDMI, eDP, eDP, 1x2.5GbE LAN, 1xGbE LAN, 2xUSB 3.2, 4xUSB 2.0, 2xCOM, 8-bit GPIO, 2xSATA 3, 1xM.2 2280 Key-M, 1xM.2 2242 Key-B, 1xMiniPCIe Full-Size, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i3-1115G4E
Socket
FCBGA 1449
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
32 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, eDP
Ethernet
Controller Type
Intel i219, Intel i226
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
2
mSATA
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2242 B
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.15 kg
Gross Weight
0.25 kg
