DN-843VI-600V

ICP DAS
SKU: 06125100

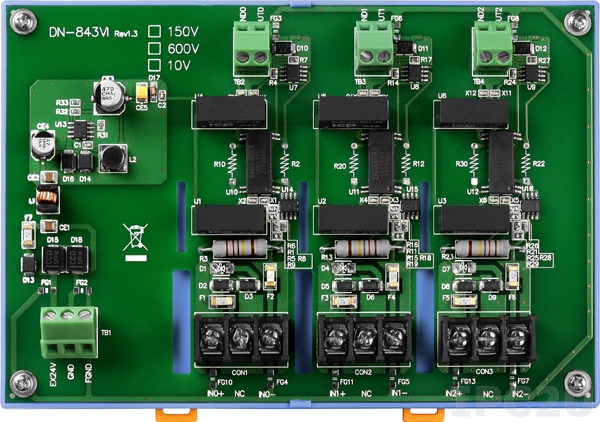

isolation 3-channel Voltage Input Attenuator
Price on request
Available on order
Available on order
Construction
Construction Chassis
Open Frame
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
3
Voltage range
+/-600 V
Analog Output
Channels of analog input
3
Voltage range
+/-10 V
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
122 mm
Depth
174 mm
Height
24.5 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.31 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
3
Voltage range
+/-600 V
Analog Output
Channels of analog input
3
Voltage range
+/-10 V
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
122 mm
Depth
174 mm
Height
24.5 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.31 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
3
Voltage range
+/-600 V
Analog Output
Channels of analog input
3
Voltage range
+/-10 V
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
122 mm
Depth
174 mm
Height
24.5 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.31 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
3
Voltage range
+/-600 V
Analog Output
Channels of analog input
3
Voltage range
+/-10 V
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
122 mm
Depth
174 mm
Height
24.5 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
0.31 kg
