B44
ACTi
SKU: 06683500

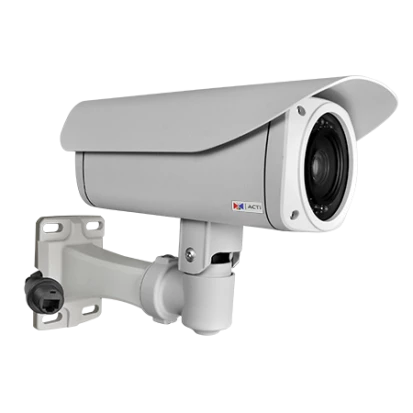

1.3MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, SLLS, 10x Zoom lens, f4.9-49mm/F1.8-3.0, DC iris, H.264, 720p/60fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10 (metal casing) , DI/DO
Price on request
Available
Available
Camera
Form Factor
Bullet
Maximum Resolution
1.3 MP
Day&Night Mode
IR Cut Filter Remove
Optical Magnification
10x~.
Focus Control
Auto
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
30 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, DC input (terminal block), MicroSD card slot, Terminal block
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
12 W
Dimensions and weight
Width
122.4 mm
Depth
240.4 mm
Height
101.4 mm
Operating Conditions
Operating Temperature
-40..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
4 kg
