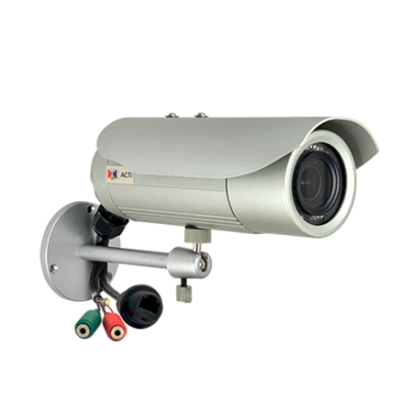

E47

E47

ACTi
SKU: 06683000
1.3MP Bullet with D/N, Adaptive IR, Basic WDR, SLLS, Vari-focal lens, f2.8-12mm/F1.4, H.264, 720p/60fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP68, IK10 (metal casing) , DI/DO
607,55 €
Price exlc. VAT and shipping costs
Available
Available
Camera
Form Factor
Bullet
Maximum Resolution
1.3 MP
Day&Night Mode
IR Cut Filter Remove
Max Resolution Frame rate
30 fps
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, 2xJack 3.5 mm
System Power Input
Power Consumption
5.28 W
Dimensions and weight
Depth
218 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
1.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
1.3 MP
Day&Night Mode
IR Cut Filter Remove
Max Resolution Frame rate
30 fps
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, 2xJack 3.5 mm
System Power Input
Power Consumption
5.28 W
Dimensions and weight
Depth
218 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
1.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
1.3 MP
Day&Night Mode
IR Cut Filter Remove
Max Resolution Frame rate
30 fps
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, 2xJack 3.5 mm
System Power Input
Power Consumption
5.28 W
Dimensions and weight
Depth
218 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
1.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
1.3 MP
Day&Night Mode
IR Cut Filter Remove
Max Resolution Frame rate
30 fps
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, 2xJack 3.5 mm
System Power Input
Power Consumption
5.28 W
Dimensions and weight
Depth
218 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
1.5 kg
Documentation
E47_Datasheet_20160128.pdf
Documentation
E47_Datasheet_20160128.pdf
Documentation
E47_Datasheet_20160128.pdf
Documentation
E47_Datasheet_20160128.pdf
