E417

E417

ACTi
SKU: 06907600

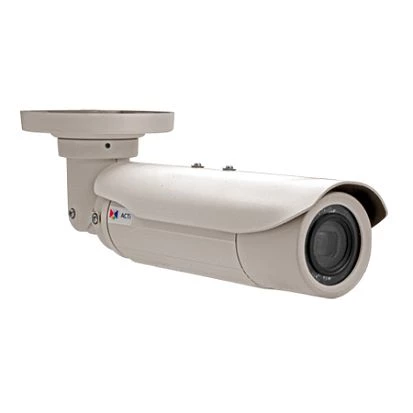

2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 10x Zoom lens, f4.9-49mm/F2.8-3.5 (HOV:63-6.3), Adaptive iris, Auto Focus (for installation), H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC, PoE/DC12V, IP68, IK
250,35 €
Price excl. VAT and shipping cost
Available
Available

Camera
Form Factor
Bullet
Maximum Resolution
2 MP
Day&Night Mode
IR Cut Filter Remove
Optical Magnification
10~0
Focus Control
Auto
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
60 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, MicroSD card slot, 2xJack 3.5 mm
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
6.72 W
Dimensions and weight
Width
119.42 mm
Depth
291 mm
Height
113 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
2.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
2 MP
Day&Night Mode
IR Cut Filter Remove
Optical Magnification
10~0
Focus Control
Auto
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
60 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, MicroSD card slot, 2xJack 3.5 mm
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
6.72 W
Dimensions and weight
Width
119.42 mm
Depth
291 mm
Height
113 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
2.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
2 MP
Day&Night Mode
IR Cut Filter Remove
Optical Magnification
10~0
Focus Control
Auto
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
60 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, MicroSD card slot, 2xJack 3.5 mm
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
6.72 W
Dimensions and weight
Width
119.42 mm
Depth
291 mm
Height
113 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
2.5 kg
Camera
Form Factor
Bullet
Maximum Resolution
2 MP
Day&Night Mode
IR Cut Filter Remove
Optical Magnification
10~0
Focus Control
Auto
Video Analytics Functions
Motion Detection
Max Resolution Frame rate
60 fps
Supported Protocols
Managment Protocols
SMTP, HTTP, UDP, DNS, DHCP, SNMP, NTP, DDNS, IGMP, ARP, TCP, FTP, Bonjour, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Connectors
Connectors
RJ45, MicroSD card slot, 2xJack 3.5 mm
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
6.72 W
Dimensions and weight
Width
119.42 mm
Depth
291 mm
Height
113 mm
Operating Conditions
Operating Temperature
-30..50 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class B
EMS
EN 55024
Vandal Resistance
EN 62262, IK10 level
Dimensions
Gross Weight
2.5 kg

Documentation
E417
Documentation
E417
Documentation
E417
Documentation
E417

Get a Quote

ACTi
SKU: 06907600
E417
