aROK-8110

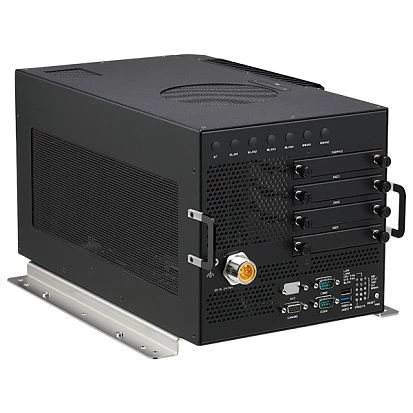

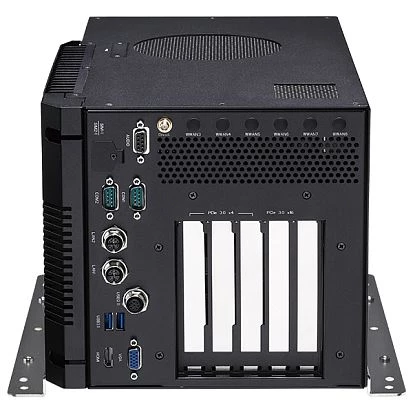

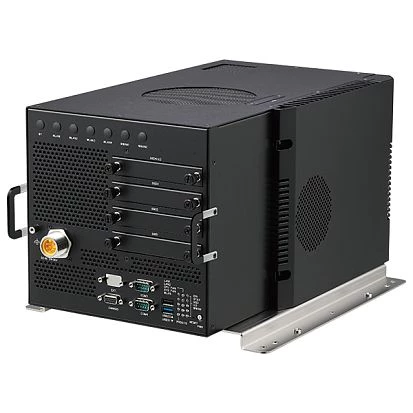

aROK-5510 Railway PC with Intel Coffee Lake S Core-i/Xeon CPU, aROK-8110 Railway PC with Intel Coffee Lake S Core-i/Xeon CPU, optional NVIDIA GPU up to 250W via PCIe x16, 3x PCIe x4, up to 64GB RAM, 4x HDD/SSD, 4x COM, CAN, DIO The aROK-8110 is a Railway PC which was especially designed for the requirements of AI image recognition and machine vision. It has an expansion slot for high performance graphics cards (GPU) with up to 250W and three more to accommodate additional discrete graphics, interference and frame grabber cards or more. The aROK-8110 can accommodate powerful processors from Intel's 8th and 9th generation Coffee Lake Pentium, Core-i, Xeon via an LGA1151 socket and holds up to 64GB DDR4 RAM. This is complemented by the possibility of external GPUs via 1x PCIe x16 and 3x PCIe x4 for computationally intensive operations in AI (artificial intelligence) based image recognition, analysis and processing. The image data can be captured via up to 12 GbE (PoE optional) for IP cameras and recorded on four HDD/SSD in a RAID 0/1/5/10 array, if required by the application. In order to be able to take over telematics functions, the aROK-8110 is also equipped with GNSS (GPS, GLONASS, Beidou and others) positioning system with dead reckoning, CAN 2.0B, RS232/422/485, DIO and other interfaces, whose data can be transferred via LTE or WLAN to the control center. The aROK-8110 is a Railway PC in a particularly flexible design, which allows the user to scale the system to his specific application profile by selecting a suitable CPU and expansion cards. Even highly computationally intensive tasks such as automatic pantograph inspection, obstacle, signal and sign recognition can be performed.
