AMAX-5017C-A

AMAX-5017C-A

Advantech
SKU: 08462300

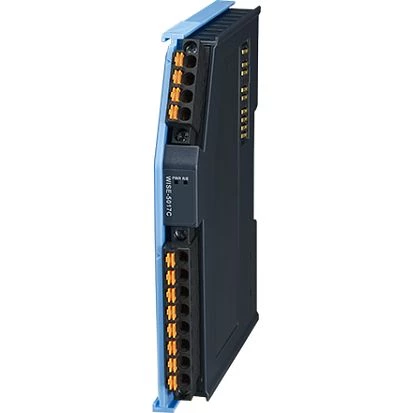

6-ch Current AI Module, +/-20mA, 0...20mA, 4...20mA, 24VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
100 Hz
Differential channels
6
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Aluminium Chassis
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
100 Hz
Differential channels
6
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Aluminium Chassis
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
100 Hz
Differential channels
6
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Construction
Construction Chassis
Aluminium Chassis
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
100 Hz
Differential channels
6
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.08 kg
Gross Weight
0.1 kg
Documentation
Datasheet AMAX-5017C, 5017V, 5017H User Manual AMAX-5000 modules
Documentation
Datasheet AMAX-5017C, 5017V, 5017H User Manual AMAX-5000 modules
Documentation
Datasheet AMAX-5017C, 5017V, 5017H User Manual AMAX-5000 modules
Documentation
Datasheet AMAX-5017C, 5017V, 5017H User Manual AMAX-5000 modules
